  SD4 Super Duty Four and Stock Iron Duke Intake Comparison

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


SD4 Super Duty Four and Stock Iron Duke Intake Comparison by RWDPLZ
Started on: 09-25-2012 11:50 PM
Replies: 12
Last post by: fierosound on 04-05-2013 05:29 PM
RWDPLZ
Member
Posts: 15057
From: Michigan
Registered: May 2002


Feedback score:    (11)
Leave feedback





Total ratings: 305
Rate this member

Report this Post09-25-2012 11:50 PM Click Here to See the Profile for RWDPLZClick Here to visit RWDPLZ's HomePageSend a Private Message to RWDPLZDirect Link to This Post
Thought some people might find this interesting. The SD4 intake is WAY bigger than the stock intake.



The ports are MASSIVE in comparison! The black marks on the stock intake are where the intake gasket lines up, I'm planning to gasket match that intake.





The SD4 intake will not fit in the stock engine bay, without removing the trunk wall, or moving the engine from the stock position.



fierosound explains that in the thread on his SD4 install:

https://www.fiero.nl/forum/Forum3/HTML/000077.html

IP: Logged
PFF
System Bot
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post09-25-2012 11:56 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post

quote
Originally posted by RWDPLZ:

The SD4 intake will not fit in the stock engine bay, without removing the trunk wall, or moving the engine from the stock position.

fierosound explains that in the thread on his SD4 install:



I think that was only because of the way the 4T60 4-speed automatic sits with stock transmission mounts (tranny's a bit wider).
I had to modify the front transmission mount to get the transmission level (front is high).

It think it should be OK if you're staying with stock transmission and mounts - but it will still be close.
EDIT: I'm sure I used just stock mounts when I swapped in a Fiero Getrag 5-speed and took the 4T60 4-speed automatic out.

------------------
My World of Wheels Winners (Click on links below)

3.4L Supercharged 87 GT and Super Duty 4 Indy #163

[This message has been edited by fierosound (edited 05-23-2013).]

IP: Logged
RWDPLZ
Member
Posts: 15057
From: Michigan
Registered: May 2002


Feedback score:    (11)
Leave feedback





Total ratings: 305
Rate this member

Report this Post09-26-2012 12:03 AM Click Here to See the Profile for RWDPLZClick Here to visit RWDPLZ's HomePageSend a Private Message to RWDPLZDirect Link to This Post
I dunno, I had it lined up pretty close, and it looked there was a good 2" of interference. Don't really want to drain the coolant and take the intake off to find out at this time, though.
IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post09-26-2012 12:21 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post

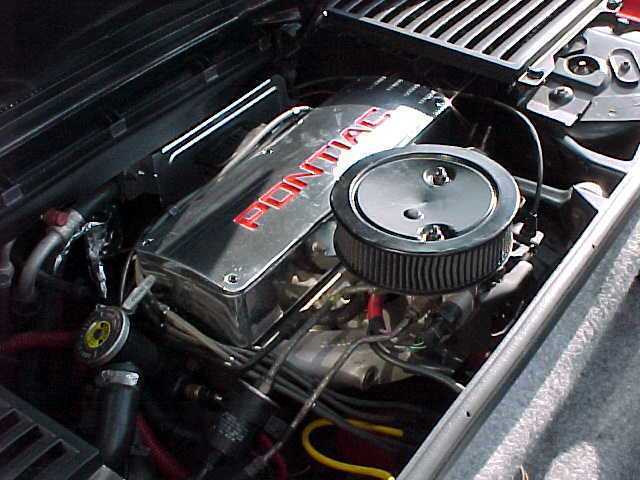

Found these pictures I'd seen before.

Pretty sure this is on a stock Duke with stock engine/trans mounts.
https://www.fiero.nl/forum/Forum3/HTML/000020.html




On the REAL Indy, it appears they notched the trunk more for the air cleaner than for the manifold.
The Indy had a TBI although the engine was originally designed with a carb in mind.

[This message has been edited by fierosound (edited 09-26-2012).]

IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post10-05-2012 06:46 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post
For real overkill (only $525) http://www.thecarburetorsho...ultiplemanifolds.htm


Looks like this on the engine.

[This message has been edited by fierosound (edited 10-06-2012).]

IP: Logged
RWDPLZ
Member
Posts: 15057
From: Michigan
Registered: May 2002


Feedback score:    (11)
Leave feedback





Total ratings: 305
Rate this member

Report this Post10-05-2012 08:20 PM Click Here to See the Profile for RWDPLZClick Here to visit RWDPLZ's HomePageSend a Private Message to RWDPLZDirect Link to This Post
That is just obscene

[This message has been edited by RWDPLZ (edited 10-05-2012).]

IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post10-06-2012 12:03 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post
You won't see these often, but Offenhauser also made a 4-bbl for the Duke


For a while Clifford also have 4-bbl intakes for the Duke


More suitable for use on Duke or mild SD4 would be the Edelbrock 2-bbl carb intake.


There's also the Edelbrock Performer intake for TBI


Holley also made a performance intake and TBI for the Duke (I think this is one)

[This message has been edited by fierosound (edited 10-06-2012).]

IP: Logged
RWDPLZ
Member
Posts: 15057
From: Michigan
Registered: May 2002


Feedback score:    (11)
Leave feedback





Total ratings: 305
Rate this member

Report this Post10-06-2012 12:58 PM Click Here to See the Profile for RWDPLZClick Here to visit RWDPLZ's HomePageSend a Private Message to RWDPLZDirect Link to This Post
Here's one (not mine unfortunately):

IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post10-06-2012 03:20 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeDirect Link to This Post
Has anyone tried an ITB intake on a Duke or SD4?
IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post10-07-2012 01:43 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post

quote
Originally posted by Blacktree:

Has anyone tried an ITB intake on a Duke or SD4?


Like this? https://www.fiero.nl/forum/Forum4/HTML/057012.html



IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post10-07-2012 01:53 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post

fierosound

15189 posts
Member since Nov 1999
IP: Logged
PFF
System Bot
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post10-07-2012 02:05 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post

fierosound

15189 posts
Member since Nov 1999
Don't forget about Webers. (not my engine)



[This message has been edited by fierosound (edited 04-05-2013).]

IP: Logged
fierosound
Member
Posts: 15189
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 286
Rate this member

Report this Post04-05-2013 05:29 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageSend a Private Message to fierosoundDirect Link to This Post
My Indy originally had Webers on the SD4 - not practical. Because of the trunk, you can't fit any air cleaner at all.
All the carbs had were foam screens on the end of the trumpets that would be sucking hot engine bay air from over the muffler area.

[This message has been edited by fierosound (edited 04-05-2013).]

IP: Logged
