90mm Headlight Bucket Conversion. How do you adjust & aim the headlights? (Page 1/2)
JohnWPB OCT 28, 12:17 PM
I have Danyel's headlight buckets, and the 90mm headlamp housings. I can not figure out how to aim the headlights properly, They are pointed down so low, that the low beams are aimed at just 10 feet or so in front of the car.

Any help is appreciated!
FIER086 OCT 28, 02:14 PM
I did mine a couple weeks back. Ideally you want the car parked on a flat surface about 20 ft or so away from a flat wall. I used my garage door. Go on youtube and search headlight aiming for projector lights. The videos will show you what the light pattern and cut off will look like and how to aim both headlights. If you used the Hella projectors, either 90mm or 60mm , the screws and springs used to mount the lights to the buckets is what you use to aim them. Each screw changes the position. Up/down, side to side. Watch your light pattern on the wall while you turn each screw. Do one screw at a time for each light until you get it right. Like I said, check youtube for more pointers. I got my 60mm projector low beams spot on! Still working on the high beams but the projectors are so good that the low beams are all I really use in my area.
JohnWPB OCT 29, 04:44 PM

quote
Originally posted by FIER086:

the screws and springs used to mount the lights to the buckets is what you use to aim them. Each screw changes the position. Up/down, side to side. .



This I guess is where my problem lies. There are no springs and screws. The screws I have are in 3 "corners" of each light. I can turn them and turn them, and they do not do any adjustments whatsoever. They appear to be just screws to hold the lights into the buckets.

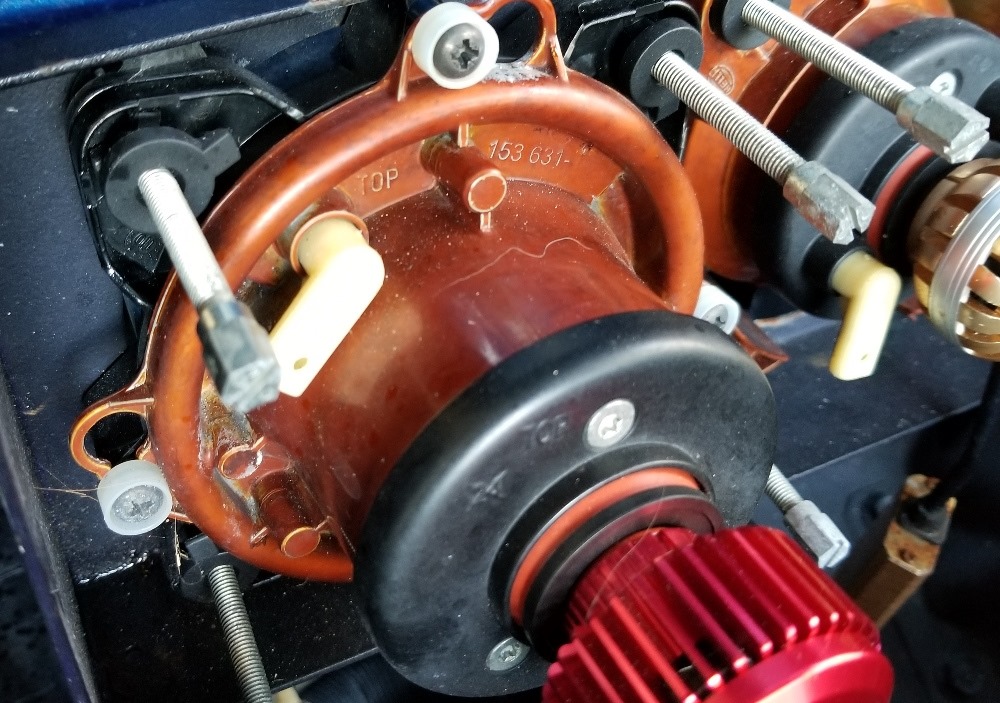

Here is an image showing the screw coming from the back, and into a plastic nut that pops into the headlight bucket holes.

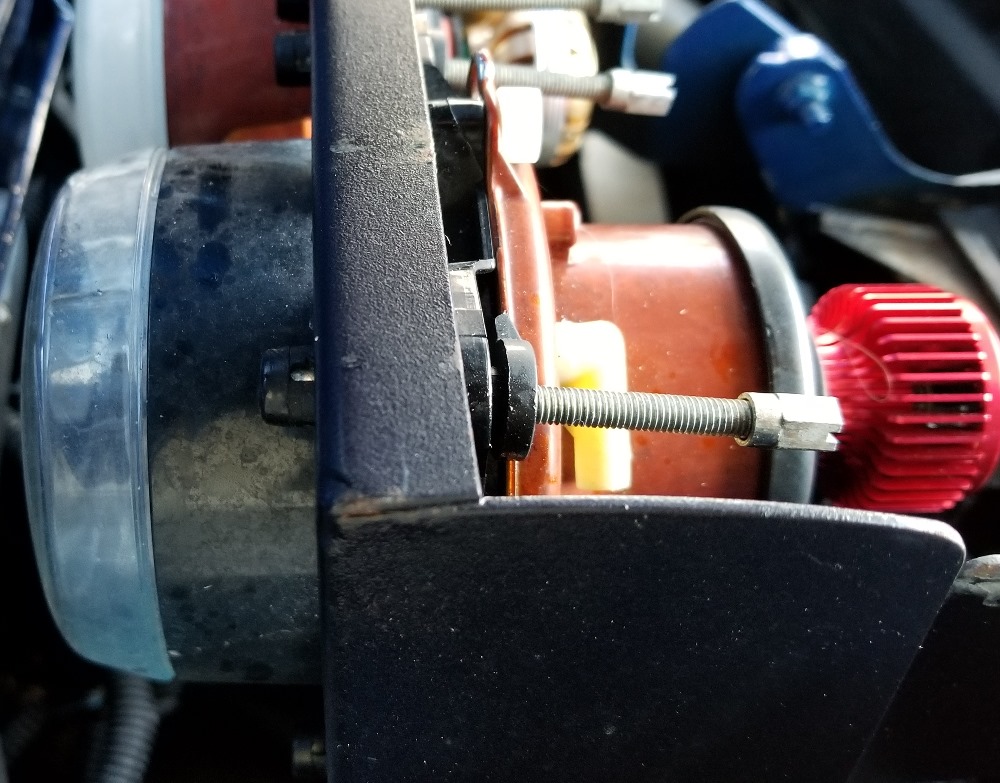

From the back you can see the screws simply hold the lights in the buckets. There is no "slider" or anything on the screw that would move the headlight housings in any way when you tighten or loosen any of the screws.
Jakesdads86gt OCT 30, 12:10 PM
John, The ball end of the adjuster screws should be snapped into the plastic retainer so it is trapped in there. Then you need to back out the screws (all 3 of them and walk the light housing down the threads away from the bucket. The light should be supported on the 3 adjuster screws like legs, and not tightened against the bucket. then you adjust them individually to get the light to aim where you want it.

I had to grind the hole for the light to get a little more clearance but your mileage may vary. I had slightly different Hellas than yours.

Bruce
JohnWPB OCT 30, 02:56 PM

quote
Originally posted by Jakesdads86gt:

John, The ball end of the adjuster screws should be snapped into the plastic retainer so it is trapped in there. Then you need to back out the screws (all 3 of them and walk the light housing down the threads away from the bucket.



Bruce, thanks for the tips. Do you happen to have access to take a photo of how it should look? That would show me how it is supposed to look when assembled correctly.
IMSA GT OCT 30, 03:39 PM
John, I don't know if this will help you but these are from Alex4mula's thread:

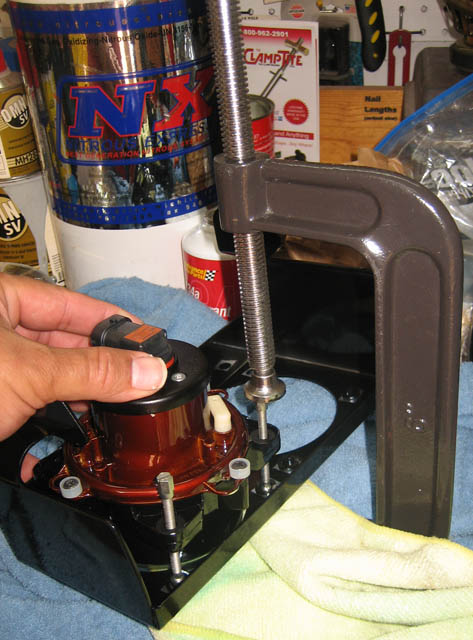

In the last pic, you can see how the lights are suspended by those "clips" that appear to be loose in you photo. I assume they are threaded and are secured into the light itself. Also in the last pic, he is showing how he popped the ball ends into the retainers using a c-clamp.

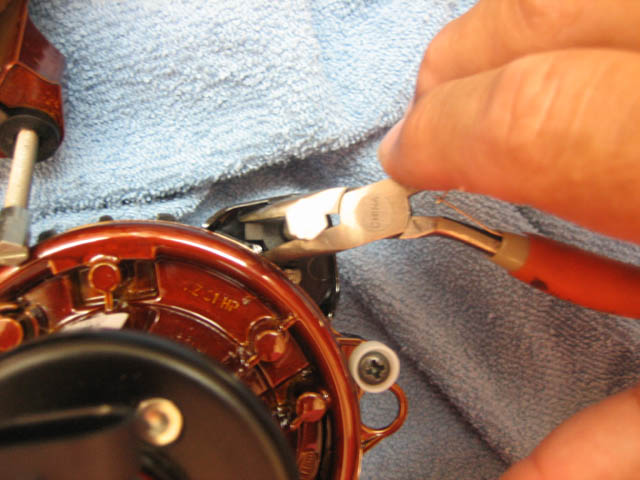

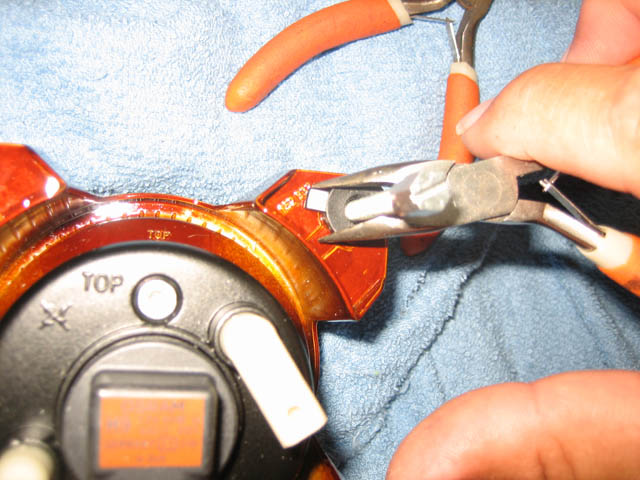

By the way, I have no idea what I'm talking about when it comes to these lights but it appears that the item I circled in your picture should be clamped onto the light housing and it should be threaded to allow the adjustment. I believe the first few pics show Alex installing that part onto the light.

[This message has been edited by IMSA GT (edited 10-30-2018).]

Alex4mula OCT 30, 05:39 PM
Amazing how I come here after a long time and see stuff I posted years ago. Glad it may helps but don't ask me now. I have no recollection of any of that. I'm old :-D Car is already in winter storage so I cannot pop up hood to check. By the way, mines are also pointing too low. Only notice when I rarely dive at night. Always say next time I'll adjust them but never happened since I got these.
Jakesdads86gt OCT 31, 09:14 PM

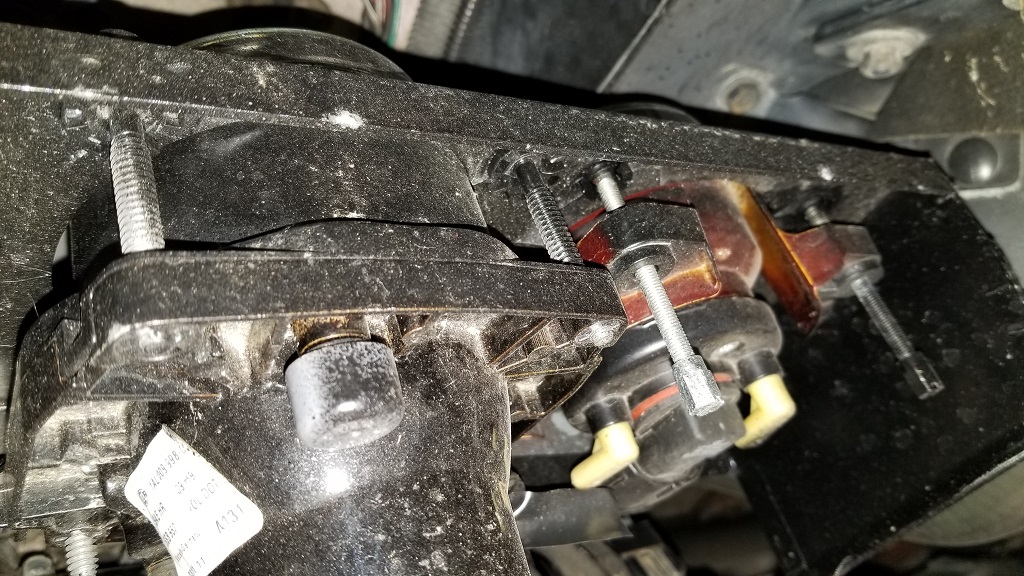

Went and took a picture and it looks like I really need to do some cleaning. I have a Bi-Halogen crammed in there and had to mod the bucket quite a bit, but you can see how the adjusters are.

Jakesdads86gt OCT 31, 10:32 PM

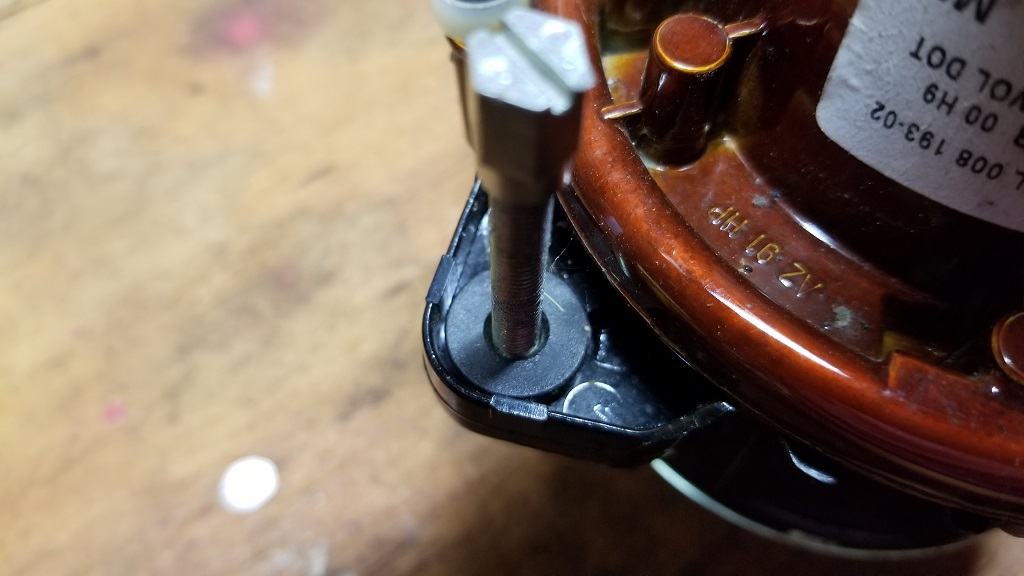

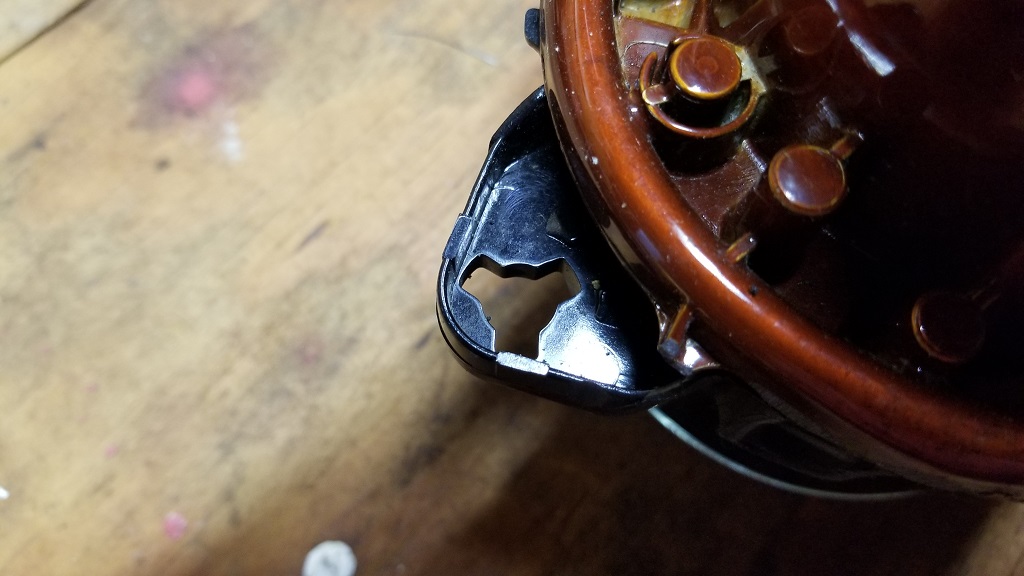

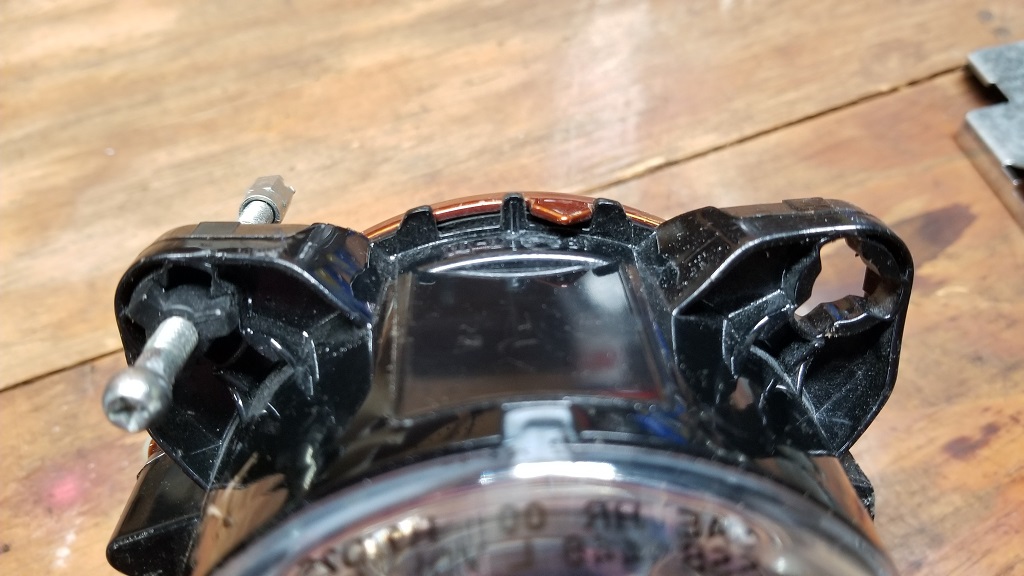

Dug out an extra module I have and took a few more to show how the plastic nuts twist into the ears on the housing
Danyel NOV 01, 04:15 PM
the insertion nuts are inserted into the Hellas as in the pic above...... they are the ones that adjust the beams parallelism when you screw in or out the bolts....


regards
Danyel
