ZaraSpOOk
|
APR 25, 09:22 PM
|
|
I did a cradle drop and everything is fine except I can;t get one of the wires attached to the AC unit, does anybody have a picture of the back and of the unit where the wires go?
I am working blind, can feel but not see.
1988 V6
|
|
|
|
skywurz
|
APR 25, 11:32 PM
|
|
|
You disconnected the wire harness from the engine for the cradle drop?
|
|
|
|
ZaraSpOOk
|
APR 26, 03:11 PM
|
|
sorry I should have been more specific.
there are three connections to AC compressor, one o the "front" or passenger side of car
then there are two single pin connectors on the "back" side (toward front of car), one is pin shaped (AC FAN), the other mushroom shaped (high pressure)
it's the high pressure conn I can't make, I believe it goes to the mushroom shaped pin rather than the straight pin
I can't see the area, but can feel
if some one could post a pic of this area of he AC compressor, where the two single pin conn go, I'd appreciate it[This message has been edited by ZaraSpOOk (edited 04-26-2021).]
|
|
|
|
ZaraSpOOk
|
APR 30, 08:51 PM
|
|

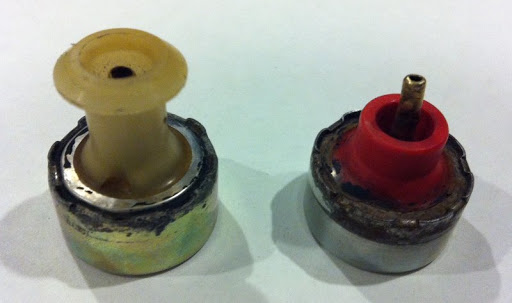

here is a pic of the two connectors
the one on the left is the one I'm trying to connect
I can't seem to make contact, is it possible one of the connectors will plug into the wrong one?
I have made connection to the one on the right but the remaining connector will not fit on the one on the right, do I have them mixed up or is it just because I can't see what I'm doing?
If you have a pic of the area where these connectors go, I'd appreciate it.[This message has been edited by ZaraSpOOk (edited 04-30-2021).]
|
|
|
|
jonnyp
|
APR 30, 10:31 PM
|
|

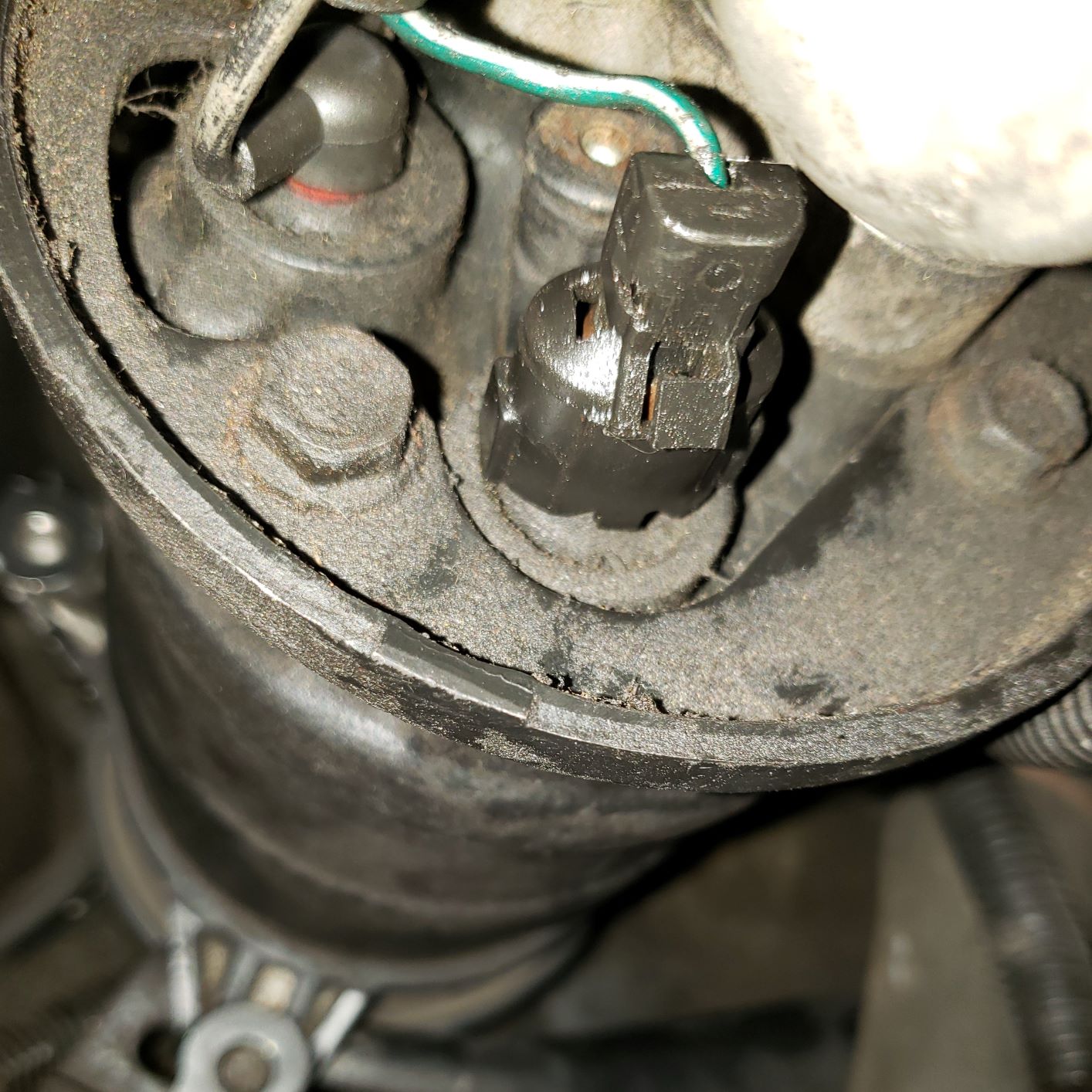

Here is a picture from underneath an 88GT. The round connector goes to the red pin, and the connector with the green wire goes to the "mushroom" shape.
Hope this helps,
JP
|
|
|
|
