| 3800 wiring (Page 1/2) |
|
TXGOOD
|
JUN 24, 06:35 PM
|
|
I aquired a 3800 wiring harness and I think I have most of the connectors figured out except
a couple that either I am not reading right or I don`t know what they are.
If anyone can verify, I would appreciate it. Here`s what I have guessed at so far.
CTS...........coolant temp sensor
TPS...........throttle position sensor
IAC............idle air control
MAF...........maf sensor
ALT............alternator wire
Range Switch...to top of trans (shift position)
AC.............air compressor wire
CPS...........crank position sensor
CMP...........cam position sensor
OPSU........oil pressure sending unit
A couple I can`t read and maybe I wrote down wrong.
DRN..........maybe speed sensor?
BACST......no idea
Let me know if you don`t see any that should be on there (not counting grounds or injector wires)
Or the various computer and electrical feed connectors.
Thanks
|
|
|
|
phonedawgz
|
JUN 24, 09:57 PM
|
|
|
Post pics of the connectors, or colors of the wires and this should be easy for most to id.
|
|
|
|
TXGOOD
|
JUN 25, 06:13 AM
|
|
Thanks, I will get some pics this afternoon.
The wiring has little tags on it but some of them I just can hardly read.
Maybe someone can tell by the connector itself.
|
|
|
|
TXGOOD
|
JUN 26, 02:56 PM
|
|
|
|
|
G-Man
|
JUN 26, 03:16 PM
|
|

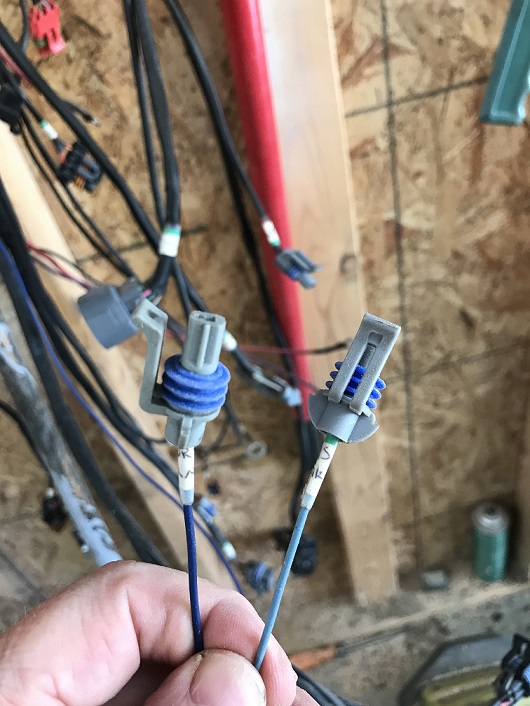

The two blue wire connectors go to the knock sensors. The dark blue goes to the front bank. The light blue goes to the rear.
Gary
|
|
|
|
Spoon
|
JUN 26, 08:06 PM
|
|
TXGOOD,
Do you know the model year the harness was for?
http://www.gmtuners.com/fil...o_L67_PCM_wiring.pdf
Here's a good site for info. http://www.gmtuners.com/
Use an Ohm Meter to probe your connector and identify the pin at the PCM connectors. Some wires don't lead to the PCM. Beware of wire colors in the harness near hot areas in the engine bay. I've found that what was suppose to be a pink wire had faded to white due to the heat. Further into the harness it was the proper color. I also deleted all the wire that had no function for my application such as Auto-Trans, and other accessories.
Spoon
------------------
"Kilgore Trout once wrote a short story which was a dialogue between two pieces of yeast. They were discussing the possible purposes of life as they ate sugar and suffocated in their own excrement. Because of their limited intelligence, they never came close to guessing that they were making champagne." - Kurt Vonnegut
|
|
|
|
phonedawgz
|
JUN 26, 09:22 PM
|
|

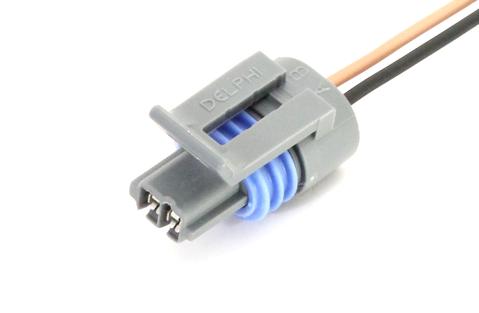

It's hard to see in the photo. I am thinking the two 'Frankenstein" notches on the side of the nose of the connector are the same size. And the wires should be Tan and Black. If so then it is the IAT Intake Air Temp sensor. It kinda makes sense at ATS - Air Temp Sensor.
 [This message has been edited by phonedawgz (edited 06-26-2021).]
|
|
|
|
phonedawgz
|
JUN 26, 09:35 PM
|
|

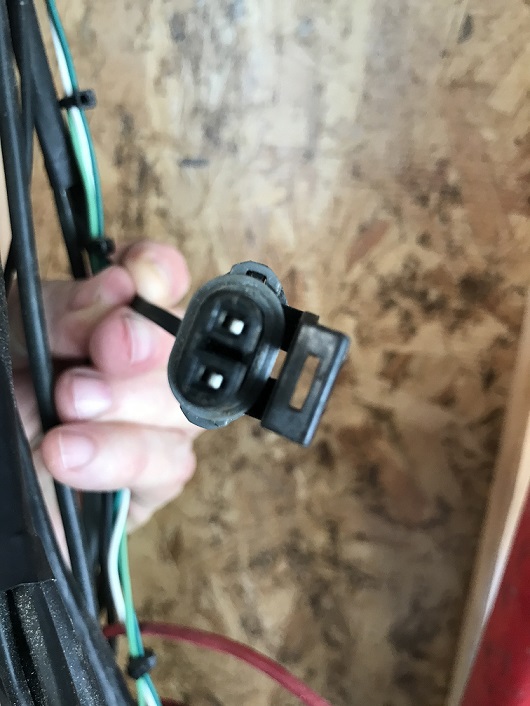

The shape of the last connector could be for the bypass control solenoid (I think they are calling it the Bypass Actuator Control Solenoid T????) Wires normally for this are Pink (switched +12) and Gray (Pin 77 Clear of a 98-02 PCM).
The other connectors it could be
Oil level sensor - on the side of the oil pan. Hardly ever used on a Fiero swap
An "other" vacuum solenoid
The Reverse switch or VSS on NON FIERO manual transmissions.
|
|
|
|
TXGOOD
|
JUN 27, 07:17 PM
|
|
Thanks guys, I’ll check all of that out. The harness is
new so the wires should have no fading. It will probably be easier whe I actually start getting the harness on the engine.
|
|
|
|
TXGOOD
|
JUN 27, 07:21 PM
|
|
|
Phonedawgz the bipass solenoid has been removed from my engine. If you are referring to the boost bipass.
|
|
|
