| How do I interpret MAP Sensor raw ECM values as vacuum and pressure. (Page 1/1) |
|
Romsk
|
AUG 21, 06:30 PM
|
|
Does anyone have any info on how to convert MAP raw values read from the ALDL data stream into vaccum and pressure?
I don't have a tool that can "create" vaccum or pressure. I can "measure" vaccum and pressure at the MAP with the engine running and such, but it changes so much I can't get a good correlation between what the MAP sees moment to moment and how the ECM interprets it.
If not, is anyone curious (and ambitious) to connect a vaccum/pressure generator to the vaccum input of their MAP, set the ALDL to ALDL Mode (10 kOhms), put the Ignition On but not run the engine, and get various raw MAP variable data values from the ALDL (0 to 255) for various vaccums and pressures put on the MAP sensor?
I don't care if vaccum and pressure is in inHg, mmHg, Bar, or PSI.
10 data points should do it. I can interpolate the rest for the full range of 0 to 255.
The actual raw values don't have to be spot on per my suggestions below (each can be off by a few counts) as long as we can get a 10 point wide spread in the 0 to 255 range and fairly accurate pressure/vaccum readings for the each raw value measured.
code:
Raw MAP Variable from the ECM Vaccum/Pressure Applied to the MAP sensor input port
5 ?
10 ?
50 ?
75 ?
100 ?
125 ?
150 ?
175 ?
200 ?
250 ?
Thanks.
------------------
Paul Romsky[This message has been edited by Romsk (edited 08-21-2022).]
|
|
|
theogre
|
AUG 21, 08:48 PM
|
|
U don't. Vacuum doesn't exist to anything but people reading a Vacuum Gauge with "Fake" Zero somewhere on the scale that just means not connected or whatever is not on.
MAP count Up, 0 to 5v on output pin, from a "Total" Vacuum. See my Cave, Sensors Quick Ref @ bottom.
GM et al use 1 Bar units for all non-boosted engines.
Most Super or Turbo uses 2 or 3 Bar units, if they use a MAP at all, but they still work with 0 to 5v and program ECM/PCM for scaling 1 2 3 or more Bars...
1 Bar units only sees "vacuum" w/ engine running as you read on a normal Vac Gauge you buy but to the MAP viewpoint only sees and measure pressure from True Zero.
2 or more can see whatever boost when active.
ECM/PCM can use them as a barometer before start the engine to test local weather/altitude to set a base timing and fuel map. So will start and run at the beach or in high altitude cities.
All OE and aftermarket ECM/PCM using MAP does the same to program to control the engine and transmission for PCM to set shift points etc.------------------
Dr. Ian Malcolm: Yeah, but your scientists were so preoccupied with whether or not they could, they didn't stop to think if they should.
(Jurassic Park)
The Ogre's Fiero Cave
|
|
|
|
Romsk
|
AUG 21, 09:56 PM
|
|
theogre,
You are a well of knowledge! Thanks. That is a great page you have! I am going to study it some more.
Just be sure we are on the same page...
Vacuum means two things to me: Absolute Vaccum based on a scale starting from 0, or relative pressure changes where a reduction in pressure from ambient pressure is a "vacuum" (like in the intake manifold) and increases (negative vacuum) above ambient pressure, that is "pressure" as opposed to vacuum in this sense (say in a boosted intake manifold). Either way, they translate to some PSIA value.
So those voltages out of the MAP do translate to A/D counts in the ECM which are reported by the ALDL.
Various Absolute Pressures = Various Voltages = Various A/D values in the ECM = Various Values reported as the MAP Variable in the ALDL data stream.
That is what I am trying to determine over the full dynamic range of the MAP sensor and ALDL.
Yes, I figured that the initial reading before the engine is started is the current atmospheric pressure which on the absolute scale is about 14.7 PSIA (Yes, 0 = pure vaccum - there is actually nowhere in free space where PSIA is true 0.0 even in intergalactic space, there are still a few molecules per cubic meter and thus a pressure in micro Torr. Ok, we are nowhere near those levels [whew!]
From your page, the voltage when at 14.7 PSIA gives me one data point in the ALDL data range of 0 to 255. I just need to get a few more data points to correlate other PSIA pressures to ALDL values. For example, when the engine revs, vacuum will be introduced in the intake manifold. So, say, a 10 inHg of vacuum = a drop of about 1.7V from the MAP = something less than 14.7 PSIA. This new lower absolute pressure is converted to a lower voltage by the MAP sensor, and the ECM converts this voltage to a value different from the initial reading (but still somewhere between 0 and 255, but to what value?).
So what I need is to know is when the pressure drops by 10 inHg, what value does the ECM report.
And say for several further drops of about 10 inHg each until its at a level not practically experienced in the manifold or the MAP sensor minimums out.
And why not go the other way for increases in pressure of about 10 inHg - to report pressures above 14.7 PSIA which is not normal in a non-boosted engines (like mine, correct?)..
but good to know if it happens.
If I could make something that can "statically stable" put various calibrated levels of vacuum, that is pressures below 14.7 PSIA into the MAP sensor (pressures of > 0 PSIA but less than ambient PSIA of about 14.7) of say in 10 inHg steps down, then I can correlate those absolute pressures to ALDL values reported.
That is crux of my investigation.
Any ideas? Money is an issue here. My CFO (wife) has given me a budget of $0. [laugh]
------------------
Paul Romsky[This message has been edited by Romsk (edited 08-21-2022).]
|
|
|
|
theogre
|
AUG 22, 01:04 AM
|
|
Read page again...
test volts, "pull 10in vac," test volts
GM etc never say a starting volts because Your starting volts changes for weather and altitude.
Same if you pull a vac at whatever steps to the max and check volts for each step.
Then weather, altitude or both changes but your program only use same volts and engine run bad or not at all.
That's why GM etc use MAP as barometer first.
IOW if you drive from beach near Sea Level to just Binghamton NY pushing 1000 feet altitude w/o shut down anywhere older ECM/PCM may have problems because still think is at sea level to set timing etc. Worse if drive to Boulder CO and even higher cities. (just ignore most can't on a single tank...)
New cars could use "extra MAP" built into PCM to read altitude when engine is on. Don't know if they do or not but easy and cheap now w/ many surface mount sensors available.
Now if you use MAP for weather and other things... Much Better sensors for this and libraries for use w/ Pi, Arduino, etc. Go look at the libraries how they convert x output to a pressure that means something. Problem is likely most are digital and GM MAP isn't.
Might find a library for GM MAP because so very common anyway. Would simply go to A/D port on 5v Arduino etc. and library convert MAP, pretend Vac/pressure Gauge, or whatever. Good luck find that because MAP() is a function of most program languishes.
|
|
|
|
Romsk
|
AUG 22, 08:41 AM
|
|
I think I have a solution:
I do have a cheezy $10 Harbour Frieght Manifold Vacuum/Fuel Pressure guage. It's not very accurate but it will do.
I can draw a vacuum up to 20 inHg using my mouth and my tongue on the hose as a "ratcheting" technique to get and hold just about any I pressure (vaccum) I need.
My experiment:
Ignition On, Engine Not Running.
First I disconnect the MAP Sensor line to the manifold and connect the MAP Sensor to a Tee and my Guage.
code:
MAP <-> Tee <-> Gauge
|
V
My Mouth
Then, I look on-line and get the local barometric pressure in inHg and record the voltage (0 to 5V with millivolts resolution) out of the MAP Sensor.
Then I put 5 inHg vaccum on the Tee using my mouth/tongue technique, and measure the voltage out of the MAP Sensor.
I repeat and record vaccums and voltages in 5 inHg steps until I read near 0V from the MAP Sensor.
Then I go the other way and apply pressure above ambient by blowing into the Tee in 5 inHg steps until I read near 5V from the MAP Sensor.
Now I will have a good pressure response vs voltage of the MAP Sensor through its full dynamic range.
Then, I can put a 10kOhm potentiometer across the 3 pins of the MAP Sensor connector that goes to the ECM (disconnected from the MAP Sensor), and dial in each voltage and record the raw ALDL values (0 to 255) of the MAP Variable for each.
Then I will have a good pressure response vs ALDL raw values.
The rest is academic... I curve fit the response so I can create a transfer function to now display the raw ALDL values as a more meaningful absolute pressure in inHg or mmHg from the MAP Sensor.
I will do that later today and post my results.[This message has been edited by Romsk (edited 08-22-2022).]
|
|
|
|
Romsk
|
AUG 22, 03:13 PM
|
|

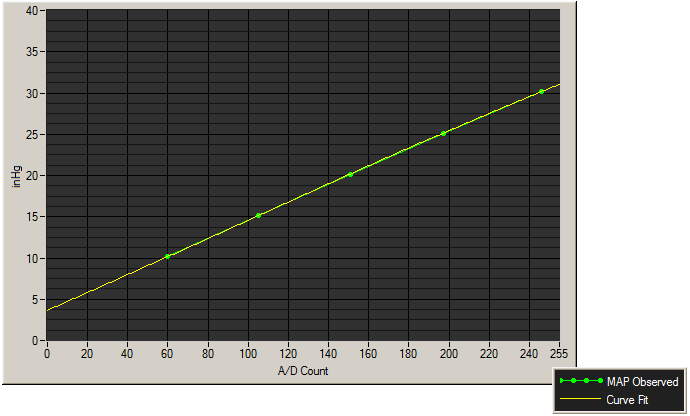

Ok, I now have an equation to convert Raw MAP Sensor ALDL values to inHg Abs.
code:
Fiero MAP Sensor to ALDL Raw Data to Absolute Pressure in inHg Curve Fit Analysis
Paul Romsky: 22 AUG 2022 05:52 UTC
PolyFit Status = 0
PolyFit Description : The call was successful.
Samples = 5
Order = 3
Sample[0] = 246 A/D Count 30.140 inHg Abs 4.830 Volts (Ambient Atmospheric Pressure in Hollis, NH, USA on 22 AUG 2022 at 04:22 UTC)
Sample[1] = 197 A/D Count 25.140 inHg Abs 3.870 Volts
Sample[2] = 151 A/D Count 20.140 inHg Abs 2.954 Volts
Sample[3] = 105 A/D Count 15.140 inHg Abs 2.050 Volts
Sample[4] = 60 A/D Count 10.140 inHg Abs 1.180 Volts
Polynomial_Value[0] = 30.145267671
Polynomial_Value[1] = 25.117363566
Polynomial_Value[2] = 20.175155207
Polynomial_Value[3] = 15.116050688
Polynomial_Value[4] = 10.146162869
Coefficient[0] = 3.64429395552267321178874226461630
Coefficient[1] = 0.10614031967576748050063883965777
Coefficient[2] = 0.00004694591003016911935630250952
Coefficient[3] = -0.00000016460899788811870803366053
Mean_Squared_Error = 0.00047751911456259674756269495433
Equation: inHg Abs = Coefficient[0] + (Coefficient[1] * A/D_Count) + (Coefficient[2] * pow(A/D_Count, 2)) +
(Coefficient[3] * pow(A/D_Count, 3))
