3800 AC Wiring Diagram?

T H I S I S A N A R C H I V E D T O P I C

Email This Page to Someone! | Printable Version

3800 AC Wiring Diagram? by RWDPLZ

Started on	: 12-19-2011 01:57 AM
Replies	: 7
Last post by	: phonedawgz on 12-20-2011 02:28 PM

RWDPLZ
Member

Posts: 15066
From: Michigan
Registered: May 2002

Feedback score:

(11)
Leave feedback

Total ratings: 305
Rate this member

Report this Post12-19-2011 01:57 AM

Click Here to visit RWDPLZ's HomePage

Send a Private Message to RWDPLZ

Direct Link to This Post

Anyone have the wiring diagram for a 3800SC air conditioning system? 98ish? Specifically the 3-pin pressure transducer and the compressor clutch

IP: Logged

PFF

System Bot

mattwa
Member

Posts: 7106
From: Lorain, Ohio
Registered: Sep 2008

Feedback score:

(41)
Leave feedback

Total ratings: 88
Rate this member

Report this Post12-19-2011 02:29 AM

Send a Private Message to mattwa

Direct Link to This Post

Ryan at Sinister Performance has charts of the wiring needed to do A/C in a Fiero, but if you are looking for factory 3800 wiring diagrams then I don't know where to find those.

IP: Logged

phonedawgz
Member

Posts: 17091
From: Green Bay, WI USA
Registered: Dec 2009

Feedback score:

(23)
Leave feedback

Total ratings: 291
Rate this member

Report this Post12-19-2011 08:50 AM

Click Here to visit phonedawgz's HomePage

Send a Private Message to phonedawgz

Direct Link to This Post

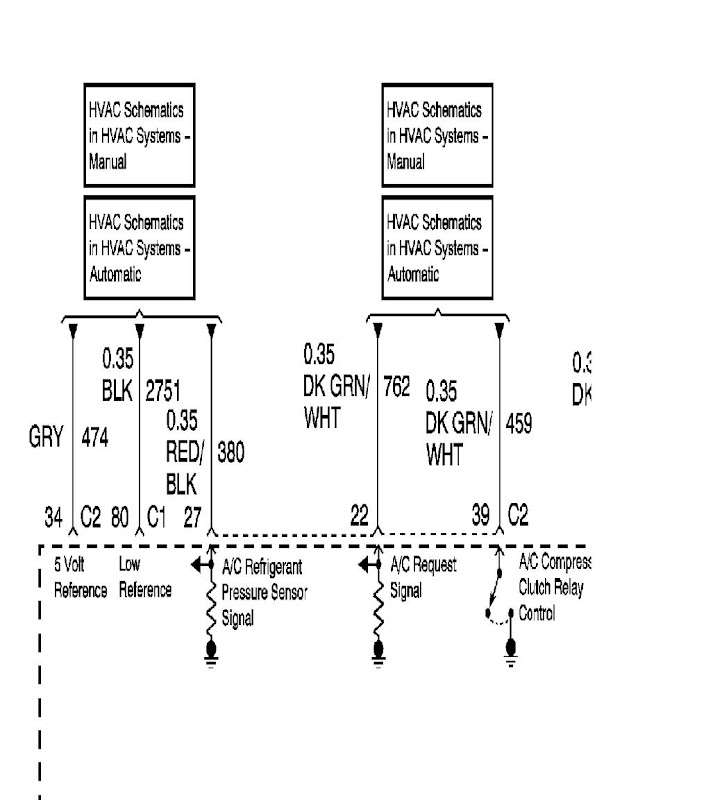

Not my diagram - But I don't know who to give the credit to

Sensor -

Clear Connector Pin 27 - Red/Black
Clear Connector Pin 34 - Gray
Clear Connector Pin 35 - Black

[This message has been edited by phonedawgz (edited 12-19-2011).]

IP: Logged

mattwa
Member

Posts: 7106
From: Lorain, Ohio
Registered: Sep 2008

Feedback score:

(41)
Leave feedback

Total ratings: 88
Rate this member

Report this Post12-19-2011 12:51 PM

Send a Private Message to mattwa

Direct Link to This Post

quote

Originally posted by phonedawgz:

Not my diagram - But I don't know who to give the credit to

Sensor -

Clear Connector Pin 27 - Red/Black
Clear Connector Pin 34 - Gray
Clear Connector Pin 35 - Black

Wow, never seen that diagram before, that is awesome! Thanks whoever made this.

IP: Logged

RWDPLZ
Member

Posts: 15066
From: Michigan
Registered: May 2002

Feedback score:

(11)
Leave feedback

Total ratings: 305
Rate this member

Report this Post12-20-2011 01:43 PM

Click Here to visit RWDPLZ's HomePage

Send a Private Message to RWDPLZ

Direct Link to This Post

That is interesting, but I was hoping to see an original if anyone has one?

IP: Logged

ALJR
Member

Posts: 3765
From: Massachusetts
Registered: Jul 2009

Feedback score:

(18)
Leave feedback

Rate this member

Report this Post12-20-2011 02:03 PM

Send a Private Message to ALJR

Direct Link to This Post

quote

Originally posted by RWDPLZ:

That is interesting, but I was hoping to see an original if anyone has one?

PM/Email me your email address and I'll send it to ya...

IP: Logged

RWDPLZ
Member

Posts: 15066
From: Michigan
Registered: May 2002

Feedback score:

(11)
Leave feedback

Total ratings: 305
Rate this member

Report this Post12-20-2011 02:09 PM

Click Here to visit RWDPLZ's HomePage

Send a Private Message to RWDPLZ

Direct Link to This Post

PM sent, thanks!

IP: Logged

phonedawgz
Member

Posts: 17091
From: Green Bay, WI USA
Registered: Dec 2009

Feedback score:

(23)
Leave feedback

Total ratings: 291
Rate this member

Report this Post12-20-2011 02:28 PM

Click Here to visit phonedawgz's HomePage

Send a Private Message to phonedawgz

Direct Link to This Post

2002 GTP

[This message has been edited by phonedawgz (edited 12-20-2011).]

IP: Logged
