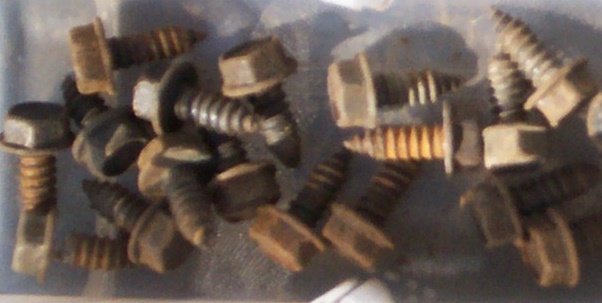

I finally got a picture of the screws I'm looking to replace. These are the sheet metal screws that hold the brake/clutch lines to the body of the car. They have a 10mm hex head and are basically the same length.



I'll be visiting a couple hardware stores this weekend to see if I can find some replacements, but it would be much nicer to know the type/size of the screws so that I might be able to call and order instead of driving around to find them.

quote Originally posted by grsychckn: I finally got a picture of the screws I'm looking to replace. These are the sheet metal screws that hold the brake/clutch lines to the body of the car. They have a 10mm hex head and are basically the same length. I'll be visiting a couple hardware stores this weekend to see if I can find some replacements, but it would be much nicer to know the type/size of the screws so that I might be able to call and order instead of driving around to find them.

Hey Tony is rebuilding my Formula and replacing almost all the nuts and bolts give him a call or e-mail him if you get a chance. He needs a lot of hardware for my car and maybe you two can work together to find the parts. My car has more then 90 percent of the parts on the underside powdercoated. Are you restoring everything on the bottom of your car?

quote Originally posted by RustyFormula: Hey Tony is rebuilding my Formula and replacing almost all the nuts and bolts give him a call or e-mail him if you get a chance. He needs a lot of hardware for my car and maybe you two can work together to find the parts. My car has more then 90 percent of the parts on the underside powdercoated. Are you restoring everything on the bottom of your car?

I'm probably not going to restore everything on the underside, but I'm thinking I might slap a coat of bed liner under there - I still have a lot of that left over from my engine bay painting. Thanks for the heads-up, I'll be contacting Tony soon.

Well, I finally got some time to work on the car this weekend. Unfortunately I don't have a lot of pictures for the work I did. When I was debating whether or not to put the new brake lines on, I decided to go ahead and rebuild the entire front suspension and steering. I took it all apart a week or so ago and dropped off the crossmember, control arms, and all other pieces to get powdercoated. I painted the unibody inside each fender with a product from eastwood.com called rust encapulator - sticks very well and doesn't chip off easily (not as shiny as POR-15, but so far seems to be more durable). I bought all new ball joints (1" lowering) from Rodney Dickman, and all new steering components (Rodney Dickman for tie rods and Fiero Store for rebuilt rack & pinion). The powdercoating cost around $525 for all the front suspension which was much more than I was expecting. I also tack welded the lower ball joints into the LCA. 3 of the 4 steering to crossmember bolts broke off when I tried to remove the rack & pinion before powdercoating, so I hammered those three off the crossmember and fabbed up some bolts on a 1/4" steel plate so I could re-attach the steering unit once I got the new one from the Fiero Store. Here are a few pics I took this morning before I left for work:





Next up is to sand down the poly bushings so that the LCA fits because the outer rims on the bushings are too thick to fit in the crossmember. Then I have to figure out how to reinstall my stock springs without killing myself in the process. I also bought a new set of front and rear spindles that I'm currently painting to keep them from rusting to anything (knuckles or rotors) because the old ones were a pain to remove. I'll hopefully have another update tomorrow.

<whining>Alright, how the heck do you re-install the front springs? I have mounted the lower control arm and I have used my spring compressor, then wrapped the coils with a chain because my compressors won't fit on the spring while it's mounted, but the chain was too wide and scratched up my $700 powdercoating job. I then tried my 5000lb rated nylon ratchet straps but they made several bigger scratches and now the spring itself will probably need to be repainted. This sucks!</whining>

But seriously, I've searched the forum and I can't find a good solution - maybe I need to buy some different spring compressors?

We found the 10 mm screws at inlinetube.com
Part# clp150

Thanks RustyFormula, I'm going to order some tonight.

quote Originally posted by grsychckn: <whining>Alright, how the heck do you re-install the front springs? I have mounted the lower control arm and I have used my spring compressor, then wrapped the coils with a chain because my compressors won't fit on the spring while it's mounted, but the chain was too wide and scratched up my $700 powdercoating job. I then tried my 5000lb rated nylon ratchet straps but they made several bigger scratches and now the spring itself will probably need to be repainted. This sucks!</whining> But seriously, I've searched the forum and I can't find a good solution - maybe I need to buy some different spring compressors?

I think I found my own answer. It's amazing what a good search can return.

https://www.fiero.nl/forum/A...040710-2-044887.html

Well, I'm basically done with the front suspension. I just need to get some cotter pins to put through the upper and lower ball joints, then get the new front hubs and brakes put on and I'll be complete. I've decided to paint the underbody of the car with the bedliner I used in the engine bay. I know some are worried about the weight of the paint, but let's be honest - it'll probably be at most 5 lbs evenly distributed over the length of the car, so that'll make up for all the insulation, trunk, etc. that I've removed. I managed to get the gas tank out last night and will be replacing the fuel pump with my new high flow pump tonight. The inside of the tank looks great, so I'm not going to do much to the tank except maybe see if I can get a special paint to make sure the welds on the tank itself are sealed to prevent rust. New pictures:







I'll be selling these front hubs & knuckles soon as I bought new ones

pretty intense work there, keep it up!

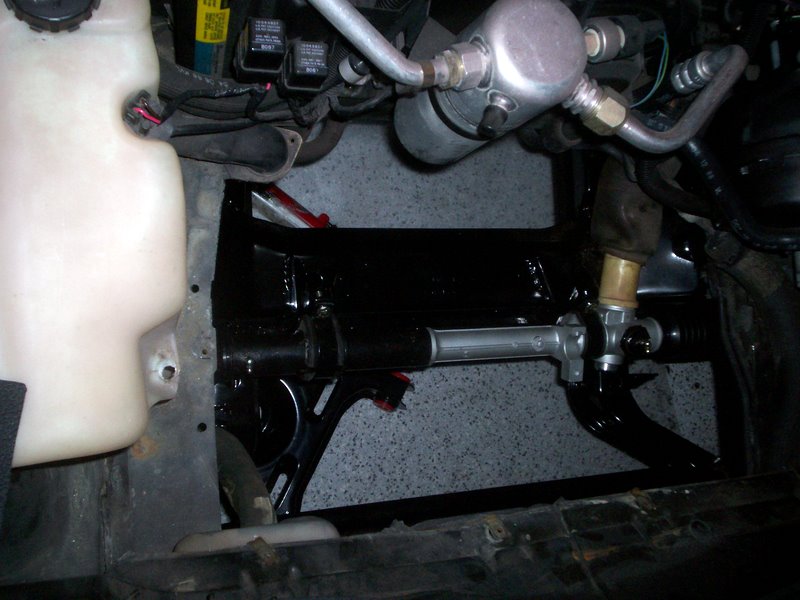

Well, I got the painting done on the underside of the car. I also replaced the stock fuel pump with a new walbro unit, but lost my replacement dampener. I guess I'm going to have to order another one if I can't find it tonight. I also painted the gas tank with some paint I got from eastwood.com.

Well, I finally got the tank put back and mounted. I also mounted the stainless steel brake lines (not to calipers yet), and began mounting the IC. Today arrived my early Christmas present in the form of some HP Split-5 wheels. Unfortunately, they didn't have any 18x9 wheels in stock nor were they expecting to get some for a long time, so I went ahead and got the 18x8s. Earlier this week my new tires arrived as well. I'll have them mounted and balanced next Wednesday possibly. Here are the picts.

Wow dude this car is top notch, I can only hope mine comes out close, the eastwood stuff you painted on the inside front fenders did you just scrub them up and brush it on? I cleaned mine once but they are still nasty looking, I have all my suspension out and would like to clean that area up both front and rear, maybe under the car like you did, I haven't taken the gas tank out yet, but I don't think I can use a spray can under the car shooting up, without making a total mess of my floor etc...

KEEP UP THE PHOTOS PLEASE!!

quote Originally posted by multmigs: Wow dude this car is top notch, I can only hope mine comes out close, the eastwood stuff you painted on the inside front fenders did you just scrub them up and brush it on? I cleaned mine once but they are still nasty looking, I have all my suspension out and would like to clean that area up both front and rear, maybe under the car like you did, I haven't taken the gas tank out yet, but I don't think I can use a spray can under the car shooting up, without making a total mess of my floor etc... KEEP UP THE PHOTOS PLEASE!!

First off, thanks for the compliments - I've sure spent a lot of time and effort trying to do things right so I don't have to go back later and re-do them because I'm not happy with the results.

The Rust Encapsulator application was pretty straightforward. I sanded all the spots down with 100 & 200 grit sand paper (pneumatic sander makes the job much easier & quicker), then I rubbed xylene (also known as xylol) over where I sanded. If there was a spot where bare metal was exposed I applied some POR-15 product called Metal-Ready that creates a thin layer of zinc on the top of the metal to prevent rust. Then I just painted the Rust Encapsulator on with a brush, although a small roller would probably have made the job easier.

I am unsure how long/durable this stuff will be, but I had a bad experience with my POR-15 job on my rear suspension because it chipped off so easily. This may do the same, but at least I'm trying something different. Heck, I've even managed to chip off the powder coating, so nothing is guaranteed to work flawlessly IMO. I would never recommend spray painting an exposed part of the car if you want it to last. The paint will come out very thin and therefore be extremely easy to chip off. I applied the bedliner with a roller and went very light with my coat underneath (tried to keep the grit in the paint to a minimum), yet I have a feeling this will last longer than the Rust Encapsulator I used on the front suspension - but time will tell.

Good luck on your project, dropping the tank can be a pain, I would recommend getting new filler neck hoses so you can cut your old ones off when removing the tank, then unscrew your filler neck itself from the driver's side of the car when re-installing the hoses (makes life much easier).

I'm going to post some more pictures tonight, but since my good camera died, I have to wait until I can get a SD card reader so I can upload them to my webserver.

More picts of the wheels.

I don't think any of your ideas are bad, I myself got the eastwood extreme epoxy chassis paint for the larger parts I couldn't powdercoat like the subframes, the A arms etc I powdercoated. I just didn't recall if they had a roll on system for that stuff, I will ask next time I go up, sounds like you used something else. And yes POR15 does tend to chip, I was nervous about using it undercar myself.. its great for interior or underhood stuff.... You should make yourself a webpage when you're done the whole thing, I'm looking into the same for mine, I can't take all the negative commentary that appears when you try to post a build thread on here....

quote Originally posted by grsychckn:Well, I got the painting done on the underside of the car. I also replaced the stock fuel pump with a new walbro unit, but lost my replacement dampener. I guess I'm going to have to order another one if I can't find it tonight. I also painted the gas tank with some paint I got from eastwood.com.

It looks like you painted over the zinc bars on the underside. Or did you mask them to keep the paint off? It's difficult to see in the photo. Painting them is a no-no 'cause those things keep your chassis from rusting.

quote Originally posted by WAWUZAT: It looks like you painted over the zinc bars on the underside. Or did you mask them to keep the paint off? It's difficult to see in the photo. Painting them is a no-no 'cause those things keep your chassis from rusting.

I'm not quite sure what you mean. Do you mean the wholes in the bottom of the chassis where there appears to be zinc in behind? Everything I painted but those were already painted the same as the rest of the frame. Also, the bedliner I used is supposed to seal (except for where I misses spots - I went back and got them) and protect against rust as well. I don't see where painting over zinc will hurt anything, but maybe I'm misunderstanding you.

Wow this is quite an amazing thread. Very informative.
Thanks for all the pictures and details of such.

quote Originally posted by grsychckn:I'm not quite sure what you mean. Do you mean the wholes in the bottom of the chassis where there appears to be zinc in behind? Everything I painted but those were already painted the same as the rest of the frame. Also, the bedliner I used is supposed to seal (except for where I misses spots - I went back and got them) and protect against rust as well. I don't see where painting over zinc will hurt anything, but maybe I'm misunderstanding you.

Those zinc bars are sacrificial anodes. They should not be coated and should remain exposed. The theory is that when everything gets wet, electrolysis starts, and the weakest of metals will corrode first. By introducing an even weaker metal (zinc), it becomes the weak leak in the corrosion chain. We install zinc bars on the outer hulls of ships at the aft end to keep the propeller(s) from becoming corroded. We also install them inside certain structural tanks to protect the structure itself. You'll also see them on most any outboard boat motor. The first time I looked beneath my Fiero, I was impressed to see that GM had installed those sacrificial anodes. Even though you've applied a thorough coating to the underside, it's those zinc bars that would've protected the areas your coating did not reach ... the areas you cannot see ... like between the various sheet metal stampings that were spotwelded together to make your chassis.

quote Originally posted by WAWUZAT: Those zinc bars are sacrificial anodes. They should not be coated and should remain exposed. The theory is that when everything gets wet, electrolysis starts, and the weakest of metals will corrode first. By introducing an even weaker metal (zinc), it becomes the weak leak in the corrosion chain. We install zinc bars on the outer hulls of ships at the aft end to keep the propeller(s) from becoming corroded. We also install them inside certain structural tanks to protect the structure itself. You'll also see them on most any outboard boat motor. The first time I looked beneath my Fiero, I was impressed to see that GM had installed those sacrificial anodes. Even though you've applied a thorough coating to the underside, it's those zinc bars that would've protected the areas your coating did not reach ... the areas you cannot see ... like between the various sheet metal stampings that were spotwelded together to make your chassis.

Gotcha - good info. I wouldn't have ever thought about that - I'm going to see about perhaps removing the paint from those. I saw an episode of Dirty Jobs where the used the zinc on a water barrier for a similar reason. + for ya.

Well, finally got some progress done with the intercooler. Here are some pictures of the heat exchanger mounted. I also mounted the pump just in front of the right front wheel. The fan I'm using is a SPAL 7.5" puller fan and will mount one switch in the dash to activate the pump and the fan. The fan will run whenever the pump is running (at least for now). Picts:
