  Info on WinALDL the diagnostiac tool (screenshots)

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


Info on WinALDL the diagnostiac tool (screenshots) by Jefrysuko
Started on: 03-04-2003 01:20 AM
Replies: 11
Last post by: Raydar on 03-20-2003 10:23 PM
Jefrysuko
Member
Posts: 3491
From: Oreana IL
Registered: Apr 2000


Feedback score:    (17)
Leave feedback





Total ratings: 108
Rate this member

Report this Post03-04-2003 01:20 AM Click Here to See the Profile for JefrysukoSend a Private Message to JefrysukoDirect Link to This Post
WinALDL is a program that was developed by Jonas Bylund and Ken Kelly. The program itself can be downloaded from Jonas website at http://w1.601.telia.com/~u60113744/software/winaldl/winaldl.htm

The program can take the data stream from a 160 baud ECM and convert it into useful data. All V6 Fieros have 160 baud ECM as well as the 84-86 L4 Fieros. The 87-88 L4 fieros use a faster baud rate so they are not supported by this program.

What you need to use this program is a computer running Windows 95/ 98/ ME or Windows NT / 2000 / XP with a serial RS232 port (9 pin COM port). You also need a simple interface cable which is connected between the ALDL port of your car and the Serial port on your computer. Information on building one of these cables is also provided on the website above.

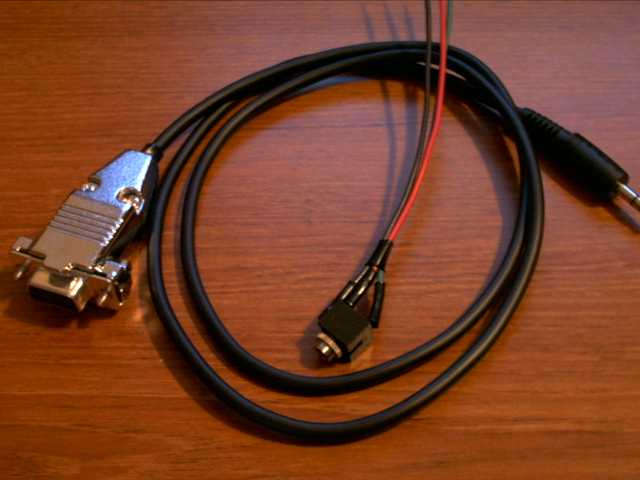

I have been making and selling these cables and they look something like this.

More information on these cables can be found at https://www.fiero.nl/forum/Forum4/HTML/012844.html

The program can display a dash which gives some useful information.

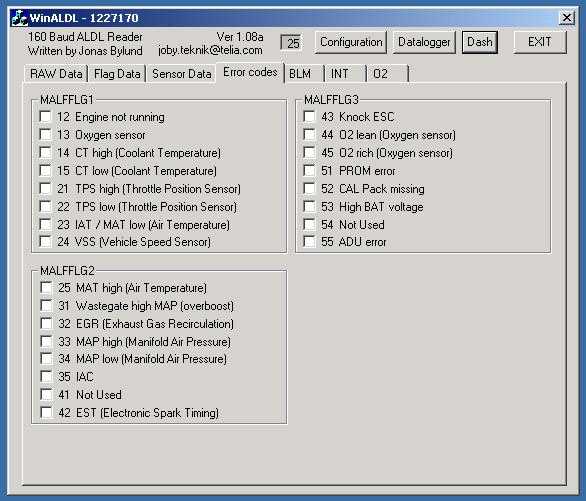

It also displays all error codes

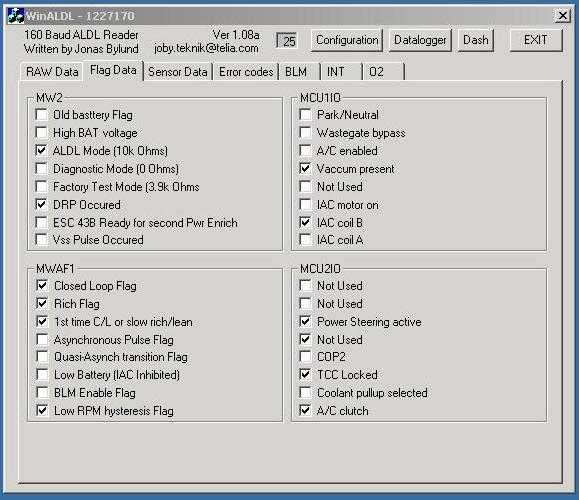

Flag data is also displayed (unfortunately some of it is wrong though).

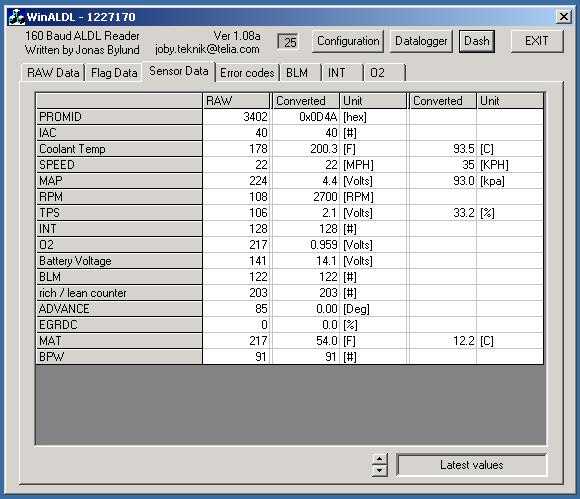

The voltages from all sensors are displayed along with the converted data.

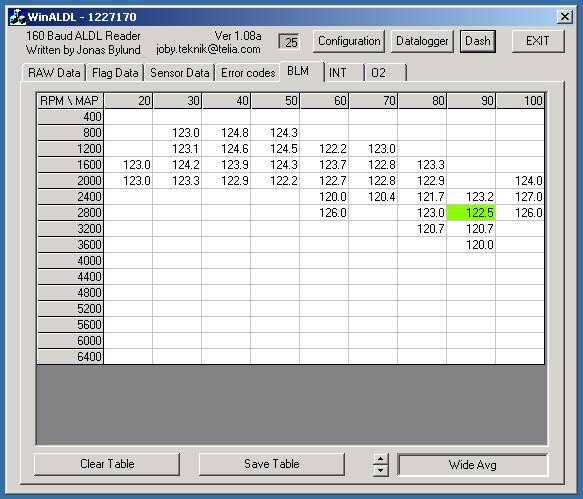

Also BLM, INT and O2 values are displayed.

All of this data can also be recorded and saved for future reference. This is a wonderful tool to use for tuning your car after performance upgrades are made in order to get full potential from them. If you are considering having a custom chip made for your car this program will give you all the necessary information to do so. It can also be used to simply diagnose failing components on our 15+ year old cars. Personally I have used it to diagnose a failing oxygen sensor and a faulty throttle position sensor.

If anyone has any questions feel free to ask away.

------------------

IP: Logged
PFF
System Bot
Songman
Member
Posts: 12496
From: Nashville, TN
Registered: Aug 2000


Feedback score: (4)
Leave feedback





Total ratings: 309
Rate this member

Report this Post03-04-2003 01:31 AM Click Here to See the Profile for SongmanClick Here to visit Songman's HomePageSend a Private Message to SongmanDirect Link to This Post
I'm about to send you my payment with PayPal. My question is - Is there any sort of glossary online that tells me what all those values mean and what is the 'normal' range that I should be looking for? Seeing it is cool.. understanding it can be downright helpful! haha

------------------

IP: Logged
lowfierogt
Member
Posts: 1931
From: MD
Registered: May 2001


Feedback score: N/A
Leave feedback





Total ratings: 247
User Banned

Report this Post03-04-2003 09:34 AM Click Here to See the Profile for lowfierogtClick Here to visit lowfierogt's HomePageSend a Private Message to lowfierogtDirect Link to This Post
Whats the pin out of the cable? I can make one at work if I know what pins on the serial connector to use. Thanks,

------------------
" TARGET=_blank rel="nofollow">http://lowfierogt.150m.com

86.5 GT, 18" wheels, GA CD brakes, ST brace, Leather, getting 3800 SC
88 Formula 5 speed T-Top stock,
88 GT, t-top, 3800

IP: Logged
Jefrysuko
Member
Posts: 3491
From: Oreana IL
Registered: Apr 2000


Feedback score:    (17)
Leave feedback





Total ratings: 108
Rate this member

Report this Post03-04-2003 09:47 AM Click Here to See the Profile for JefrysukoSend a Private Message to JefrysukoDirect Link to This Post
Here is the best information I can give out on what the readings should be.

That is from the driveability section of a factory service manual. There is plenty of good information in there.

BTW: Songman I got your order today and it will be in the mail by noon. You were my first PayPal coustomer

------------------

[This message has been edited by Jefrysuko (edited 03-10-2003).]

IP: Logged
Jefrysuko
Member
Posts: 3491
From: Oreana IL
Registered: Apr 2000


Feedback score:    (17)
Leave feedback





Total ratings: 108
Rate this member

Report this Post03-04-2003 10:04 AM Click Here to See the Profile for JefrysukoSend a Private Message to JefrysukoDirect Link to This Post

Jefrysuko

3491 posts
Member since Apr 2000

quote
Originally posted by lowfierogt:

Whats the pin out of the cable? I can make one at work if I know what pins on the serial connector to use. Thanks,

The pin outs are posted in Johans website (the first link I posted).

Make sure you know what you are doing before you start. I have repaired several peoples attempts at building one on their own. I am no longer doing that because it just takes way to much time.

It can be fun making it yourself though.

Goodluck

------------------

IP: Logged
Coop9200
Member
Posts: 2076
From: Westchester, NY
Registered: Oct 2002


Feedback score: N/A
Leave feedback





Total ratings: 61
Rate this member

Report this Post03-04-2003 03:10 PM Click Here to See the Profile for Coop9200Click Here to visit Coop9200's HomePageSend a Private Message to Coop9200Direct Link to This Post
what about horsepower and torque ? Can these values also be computed, or is this only a program for troubleshooting and such? I'm very interested in the cable, so give me a good word...

-Coop

------------------

IP: Logged
Jefrysuko
Member
Posts: 3491
From: Oreana IL
Registered: Apr 2000


Feedback score:    (17)
Leave feedback





Total ratings: 108
Rate this member

Report this Post03-04-2003 04:05 PM Click Here to See the Profile for JefrysukoSend a Private Message to JefrysukoDirect Link to This Post

quote
Originally posted by Coop9200:

what about horsepower and torque?


Nope, the program only displays parameters of the ECM in your car. You can definetly use the information to tune the car to get the most performance out if it but no way to actually compute it's performance.

------------------

IP: Logged
Jefrysuko
Member
Posts: 3491
From: Oreana IL
Registered: Apr 2000


Feedback score:    (17)
Leave feedback





Total ratings: 108
Rate this member

Report this Post03-10-2003 11:18 PM Click Here to See the Profile for JefrysukoSend a Private Message to JefrysukoDirect Link to This Post
I figure it is time that I should add a little information about configuring the program.

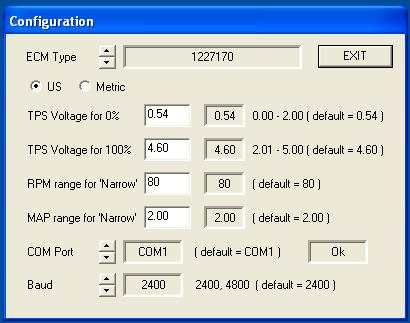

First thing is to select the proper ECM. For those with the stock 2.8 V6 the correct selection would be 1227170. For those with the stock 84-86 2.5 L4 the correct selection is 1225550, 1225570, 1225610.

As you can see here I have selected the V6 ECM.

Next is the calibration of the TPS sensor. As you see above there are two boxes. What you need to enter there is the voltage at the TPS sensor at 0% throttle and 100% throttle.

In order to do this you are going to have your cable connected to your car and computer with the WinALDL program running. Before you put the key in the ignition the little box in the upper part of the program should be empty like this.

Now go ahead and put the key into the ignition and turn the ignition to the ON position but do not start the car. The box that was empty should now be flashing a number (usually 25) which means data is being transmitted from the ECM. If the box is still empty make sure you have the right COM port selected.

On the program itself click on the tab "Sensor Values" as I did in an earlier post. You will see a value for the TPS sensor in voltage and %. With your foot not touching the accelerator read the voltage on the TPS and enter it in the box labeled "TPS Voltage for 0%." Now press the accelerator completely to the floor (make sure the floor mat is out of the way) and read the voltage again. Enter this value in the box labeled "TPS Voltage for 100%."

The rest of the values can be altered later to your preferences while using the program.

I am not sure when a different baud rate sould be selected. I would imagine that if for some reason you are not receiving accurate Data you might want to try changing this.

------------------

IP: Logged
opm2000
Member
Posts: 1347
From: Versailles, Ky USA Heart of the Bluegrass
Registered: Dec 2000


Feedback score: N/A
Leave feedback





Total ratings: 58
Rate this member

Report this Post03-11-2003 06:20 AM Click Here to See the Profile for opm2000Click Here to visit opm2000's HomePageSend a Private Message to opm2000Direct Link to This Post
I've got to agree, this is one usefull tool.

Read & print the following, it will help:
http://www.customefis.com/GMEFI.html

David Breeze

IP: Logged
fierobear
Member
Posts: 27083
From: Safe in the Carolinas
Registered: Aug 2000


Feedback score: (2)
Leave feedback





Total ratings: 383
Rate this member

Report this Post03-11-2003 08:10 PM Click Here to See the Profile for fierobearSend a Private Message to fierobearDirect Link to This Post
Does anyone know of a program that will read parameters from a 94 LT1 5.7L?
IP: Logged
Raydar
Member
Posts: 40910
From: Carrollton GA. Out in the... country.
Registered: Oct 1999


Feedback score:    (13)
Leave feedback





Total ratings: 460
Rate this member

Report this Post03-13-2003 01:09 PM Click Here to See the Profile for RaydarSend a Private Message to RaydarDirect Link to This Post
Earlier, somebody had asked about using a Palm for this.

No, I don't have the answer, but this is a Palm simulator, if someone with SW development knowledge wants to tackle it.
http://www.palmos.com/dev/tools/simulator/index.html

IP: Logged
PFF
System Bot
Raydar
Member
Posts: 40910
From: Carrollton GA. Out in the... country.
Registered: Oct 1999


Feedback score:    (13)
Leave feedback





Total ratings: 460
Rate this member

Report this Post03-20-2003 10:23 PM Click Here to See the Profile for RaydarSend a Private Message to RaydarDirect Link to This Post
ttt
IP: Logged
