FieroGTT's 4.9 turbo build-up by FieroGTT
Started on: 04-02-2003 07:07 PM
Replies: 23
Last post by: PBJ on 07-10-2003 10:10 PM
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:07 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post
Well, I figure since making "build-up" threads are the thing to do I might as well start one on my own 4.9 turbo build. Don't expect this project to finish too soon though....lol
Here's a little history behind the project. Everytime I look at my Iroc-Z I say "man, that thing is too damn heavy in the front". I wanted to build a car that was everything my Iroc-Z wasn't but still keep some of that wicked power. What I wanted was to build a small, light, stick-shift, mid-engined sports car...which led me straight to the Fiero which I had always liked (and considered buying when I originally bought the Camaro). I had also been getting into turbochargers and forced induction in general. I used N20 with great results on the Camaro, such great results that I will never build a completely N/A car again! This plus the fact that Blow-off valves sound so sweet paved the way for a turbo Fiero.
The project was originally going to be a 3.1 turbo. The plan was to use the 3.1 block with dished aluminum pistons and the Fiero iron heads to get a low enough compression for lots of boost, enough to make descent power out of the 3.1. As it turns out though the compression ratio was going to be 7.2:1, and although it could be done it would not work as well as I had expected. I could have bought forged pistons and all that jazz but money is an issue and I didn't want to spend alot on this project.
This is when I came to the budget Fiero builder's favorite, the 4.9 PFI Cadillac motor. When inquireing into the sawp I had planned on using a turbo and asked if anyone had done this or knew if there was room, and that was when I stumbled upon PBJ's turbo 4.9 swap in the early stages. My mind was then set. It could be done and will be done. I set up a budget of $4,000 and not a penny more for this projects total (including the car, a paint job, and tools). So now the $4,000 4.9 Turbo project has begun, and I'll post all the updates right here.

------------------

CLICK HERE -- Visit My Website!! -- CLICK HERE

IP: Logged
PFF
System Bot
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:12 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

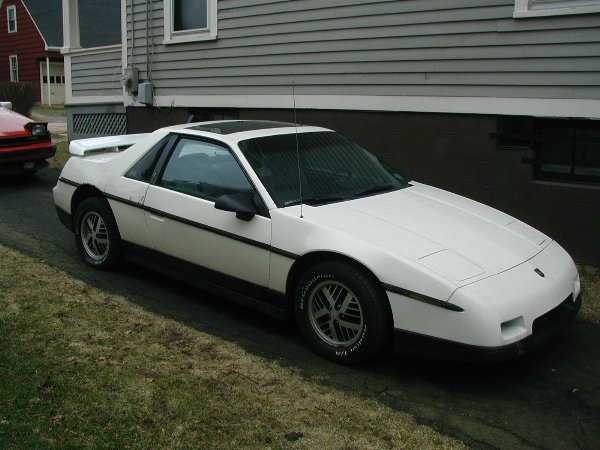

Here's the car....a diamond in the rough. This is a 90,XXX mile 1986 Fiero SE 2m4. You can see I have a little fiberglassing and bondo work to do before the paint job, but the interior is really nice and the car actually runs. Not bad for only $700!
IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:19 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002
Ok I can't get PIP to work....you'll have to hold on the pictures a few days!!!
IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:24 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002
IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:29 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002

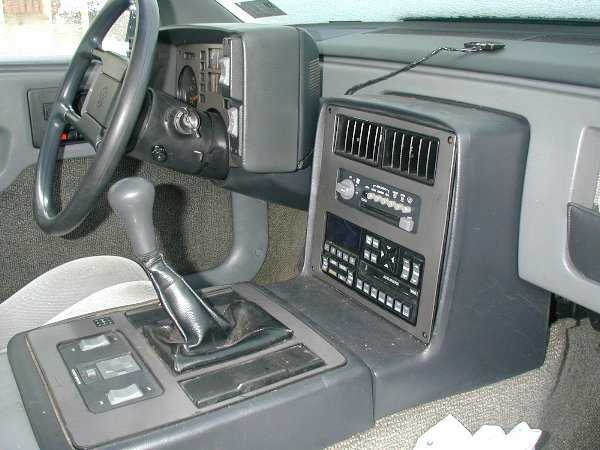

Here's the interior, a bit dust but all there and all good.

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 07:42 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002

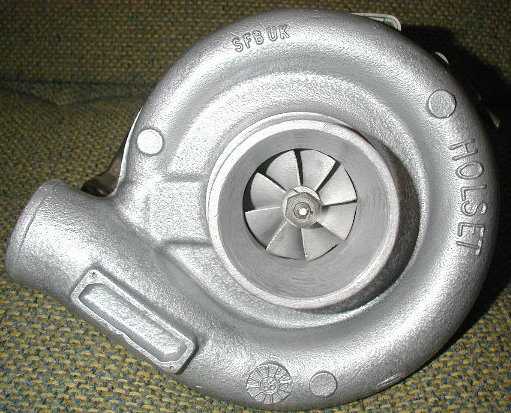

Ok, straight to the turbo. PBJ is using a GM4 unit with great success, he almost perfectly sized the turbo for his application. Since I am going to use an intercooler I needed a slightly smaller turbo to generate more boost (to account for the pressure drop across the intercooler). This is what I came up with. This is a Holset H2 turbo. In Garret equivalents It's close to a T4 or a big T3/T4 hybrid with a 1.00 turbine A/R wheel. Some Sy/Ty guys have used this kind of a turbo on their modded 4.3, which should be pretty close to a stock 4.9. The compressor map I read put me in a pretty good efficiency range but the turbo might prove to be a tad smaller than hoped for, but it will still work pretty well.

IP: Logged
PBJ
Member
Posts: 4167
From: London, On., Canada
Registered: Jan 2001


Feedback score: (1)
Leave feedback





Total ratings: 147
Rate this member

Report this Post04-02-2003 08:29 PM Click Here to See the Profile for PBJSend a Private Message to PBJDirect Link to This Post
"you can't put a turbo on the 4.9!"

Keep the updates and pic flowing.

Pete

------------------

IP: Logged
Jncomutt
Member
Posts: 8900
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post04-02-2003 09:13 PM Click Here to See the Profile for JncomuttSend a Private Message to JncomuttDirect Link to This Post
OH man!! Turbo 4.9 vs my N/A 4.9? Or rather, against my Turbo 2.8? haha... Can't wait to see this thing done, its going to be a real screeeeamer!

------------------

19 Year Old Fierophile.
--1986 SE V6, Wild Custom Notchback
--1984 SE Modified Notchback

IP: Logged
twodogjohnny
Member
Posts: 163
From: reston, va, usa
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 11:43 PM Click Here to See the Profile for twodogjohnnyClick Here to visit twodogjohnny's HomePageSend a Private Message to twodogjohnnyDirect Link to This Post
What about doing a supercharger?
-john
IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 11:49 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

quote
Originally posted by Jncomutt:

OH man!! Turbo 4.9 vs my N/A 4.9? Or rather, against my Turbo 2.8? haha... Can't wait to see this thing done, its going to be a real screeeeamer!

Believe me... I can't wait either! I got a ways to go though. Hopefully it will only take me a few months though. Just gotta free up some time.

[This message has been edited by FieroGTT (edited 04-02-2003).]

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-02-2003 11:50 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002

quote
Originally posted by twodogjohnny:

What about doing a supercharger?
-john

Ummm.....no. I mean it can be done... and it would probably be cool... but its just not what I want.

IP: Logged
PFF
System Bot
twodogjohnny
Member
Posts: 163
From: reston, va, usa
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-03-2003 11:24 AM Click Here to See the Profile for twodogjohnnyClick Here to visit twodogjohnny's HomePageSend a Private Message to twodogjohnnyDirect Link to This Post

quote
Originally posted by FieroGTT:

Ummm.....no. I mean it can be done... and it would probably be cool... but its just not what I want.

The turbo is going to be cool. I've been doing a little research on import tuning, where a supercharger seems to make more sense. I dont think you are going to need any more low end on the 4.9 (reason for a SC), so the turbo really rounds out the power curve.

I'm in the process of doing a N/A 4.9L now.
cant wait to see how your work progresses.
Good luck, and keep us posted.
-john

IP: Logged
crzyone
Member
Posts: 3571
From: Alberta, Canada
Registered: Dec 2000


Feedback score: N/A
Leave feedback





Total ratings: 176
Rate this member

Report this Post04-03-2003 02:01 PM Click Here to See the Profile for crzyoneSend a Private Message to crzyoneDirect Link to This Post
Very cool

I'm throwing a 100 shot on my 4.9, for those occasional times I might find a faster car. Document your swap and keep track of materials and you may get some business selling turbo 4.9 kits

------------------

4.9 in progress!

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-04-2003 11:10 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

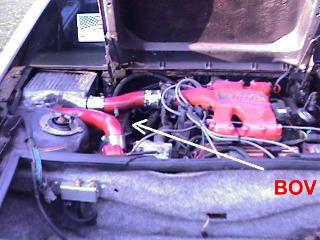

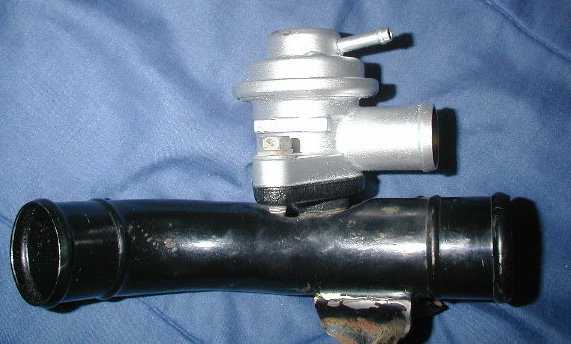

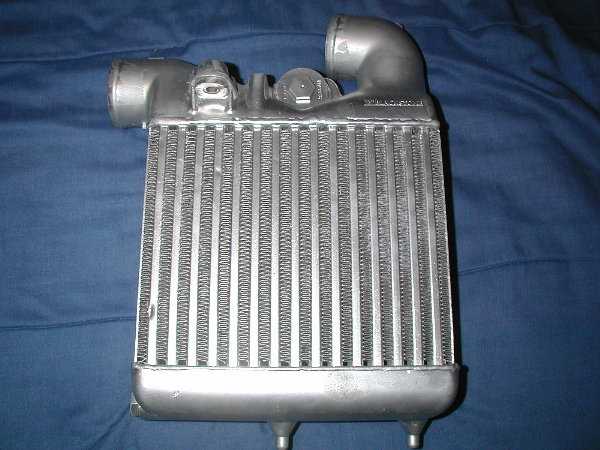

Here is the intercooler and BOV I have decided to use. The intercooler is a Saab 900 unit with aluminum end tanks. It has a great efficiency for its size due to its "double thick" design. I've seen it used on Fiero's before with great success, almost looks custom made for the application. The BOV is a stock 1G DSM unit which is good to about 1 bar or a bit over. Since I won't be running close to 1 bar of boost this will work great for me. Once again this is a proven custom turbo item, (and I like the sound too ).

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-04-2003 11:18 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post

FieroGTT

489 posts
Member since Oct 2002

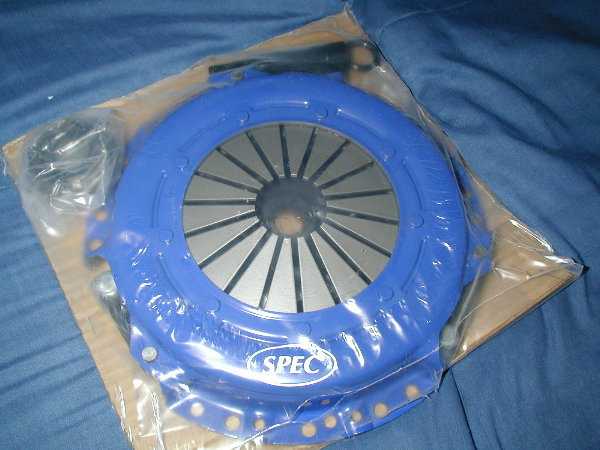

Here are some more of the swaps details. After much debate I have decided to use the 5-spd Isuzu transmission. I know alot of people don't like the Isuzu, but let's face it, the Getrag is not that much stronger. The Isuzu has higher gearing which will be a huge plus for me and this setup. Also it is cheaper to replace when it does get blown. So Isuzu it is. I have also decided on the SPEC stage 3 clutch, after calling many companies and heaing many testimonials. The SPEC clutch had the best customer service and customer satisfaction at the right prices. Special thanks to Jncomutt for pointing me in that direction. So I guess this will be the once and for all test of the clutch. Guys wanna place bets? No I won't be using slicks (I'm not THAT hell bent on breaking my drivetrain). Also keep in mind that balls out speed and 1/4 mile times are NOT what this car is being built for. If it was I would be using an automatic transmission. This is being built more for driving fun which is really what the Fiero is designed for in the first place. I had plenty of drag racing in the Camaro which is really setup more for that purpose than the Fiero.

[This message has been edited by FieroGTT (edited 04-04-2003).]

IP: Logged
Dennis LaGrua
Member
Posts: 15477
From: Hillsborough, NJ U.S.A.
Registered: May 2000


Feedback score:    (13)
Leave feedback





Total ratings: 329
Rate this member

Report this Post04-05-2003 12:22 AM Click Here to See the Profile for Dennis LaGruaSend a Private Message to Dennis LaGruaDirect Link to This Post
A turbo 4.9L in a Fiero should be a real performer. However, I am interested in seeing the level of reliability that this engine can provide while being boosted. I'm not saying that a turbocharged aluminum block 4.9L engine won't be reliable; it's just that having this setup is like crusing in unchartered waters. After these engines are run for a few passes at the drags, that should tell the story.

------------------
87GT 3.4 Turbo Best 0-60 5.2 seconds
http://turbofiero.fierojoe.com/turbo.htm

IP: Logged
ws6fiero
Member
Posts: 168
From: Montgomery, AL
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-05-2003 01:59 AM Click Here to See the Profile for ws6fieroClick Here to visit ws6fiero's HomePageSend a Private Message to ws6fieroDirect Link to This Post

quote
Originally posted by FieroGTT:

Here is the intercooler and BOV I have decided to use. The intercooler is a Saab 900 unit with aluminum end tanks. It has a great efficiency for its size due to its "double thick" design. I've seen it used on Fiero's before with great success, almost looks custom made for the application. The BOV is a stock 1G DSM ...

Hummm ;-)

IP: Logged
Jncomutt
Member
Posts: 8900
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post04-05-2003 03:08 AM Click Here to See the Profile for JncomuttSend a Private Message to JncomuttDirect Link to This Post
I see youve decided on the Isuzu, also with the spec clutch, good choice. They say the tranny is weak, but the problem is not really with the case and design, but with how it handles the 'shock' in the diff.

I'd highly reccomend you do yourself a favor and invest in a phantom grip LSD. It'll only set you back a few hundred bucks in comparison to the time and money you will save having to replace your tranny. Plus it'll help out on those track times when the boost kicks in

As always, GOOD LUCK! I'm using a similar intercooler, btw, but mine is from an RX7 I believe.

IP: Logged
BV MotorSports
Member
Posts: 4821
From: Oak Hill, WV
Registered: May 2001


Feedback score:    (7)
Leave feedback





Total ratings: 189
Rate this member

Report this Post04-05-2003 04:08 AM Click Here to See the Profile for BV MotorSportsSend a Private Message to BV MotorSportsDirect Link to This Post

quote
Originally posted by FieroGTT:

Here is the intercooler and BOV I have decided to use. The intercooler is a Saab 900 unit with aluminum end tanks. It has a great efficiency for its size due to its "double thick" design. I've seen it used on Fiero's before with great success, almost looks custom made for the application. The BOV is a stock 1G DSM unit which is good to about 1 bar or a bit over. Since I won't be running close to 1 bar of boost this will work great for me. Once again this is a proven custom turbo item, (and I like the sound too ).


I have used the 1g DSM bypass valve on many turbo cars I have built over the years. Works really well. I doesnt like to be used as a BOV though on engines with over 12psi of boost. I had to crush the top hump of it in a vice for 14psi or higher or it would bleed off boost. Should be fine for you if you dont go boost happy

Steven

------------------
88 Fiero coupe 2.5 5 speed, Custom IHI RHB6 turbo equipped, gutted and track abused
88 Coupe Project "F-88" has begun....Classified TOP SECRET **your gonna love this**
88 Fiero Coupe 2.5/auto Not sure what I am going to do to this one!
87 Fiero GT 14.9/ 89mph **4.9 PFI swap in progress**
87 Fiero Coupe 91k miles
86 Fiero SE
88 Mazda RX-7 'vert SBC v8 383/T-5
Always have engines, fiero parts and accessories for sale. Custom engine swaps and chassis modifications are available.

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-05-2003 04:09 AM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post
I don't think this car will see much track time if at all. Closet track is like 2 hours away and I want to stay away from a lot of drag racing to spare the drive train. It will see alot of G-tech runs and Pike time though, Jncomutt know what I mean

The mastermind behind everything will be the GM "749" ECM, the same one used in Sy/Ty's and turbo Sunbirds. I'm a firm believer that a boosted motor will be just as reliable as the same motor N/A as long as detonation is under control. Good tuning is the key.

IP: Logged
Jimmy
Member
Posts: 815
From: Andover, Mn
Registered: Aug 2000


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-05-2003 12:00 PM Click Here to See the Profile for JimmySend a Private Message to JimmyDirect Link to This Post

quote
Originally posted by BV MotorSports:

I have used the 1g DSM bypass valve on many turbo cars I have built over the years. Works really well. I doesnt like to be used as a BOV though on engines with over 12psi of boost. I had to crush the top hump of it in a vice for 14psi or higher or it would bleed off boost. Should be fine for you if you dont go boost happy

Steven

You must have had a bad BOV, 1G DSM BOVs should be good to at least 19-20PSI some work to 22PSI. Yeah you crush them to run boost over 20 PSI usually. My 1G valve and thousands of others have passed leakdown tests over 18-19 PSI.

FieroGTT, Nice clutch! I love mine, it is however a little rough starting in 1st gear. Good luck!

Jim
87 GT T-TOP V8
87 GT parts car
95 Talon TSi AWD w/20g, GM MAFT, all supporting mods except FMIC

IP: Logged
PFF
System Bot
Dennis LaGrua
Member
Posts: 15477
From: Hillsborough, NJ U.S.A.
Registered: May 2000


Feedback score:    (13)
Leave feedback





Total ratings: 329
Rate this member

Report this Post04-05-2003 08:26 PM Click Here to See the Profile for Dennis LaGruaSend a Private Message to Dennis LaGruaDirect Link to This Post

quote
Originally posted by FieroGTT:

I don't think this car will see much track time if at all. Closet track is like 2 hours away and I want to stay away from a lot of drag racing to spare the drive train. It will see alot of G-tech runs and Pike time though, Jncomutt know what I mean

The mastermind behind everything will be the GM "749" ECM, the same one used in Sy/Ty's and turbo Sunbirds. I'm a firm believer that a boosted motor will be just as reliable as the same motor N/A as long as detonation is under control. Good tuning is the key.

I like your choice of ECM. It's well documented for boosted engines but as you know a new throttle body with an IAC will need to be adapted.
I agree that good tuning is really key to optimizing power and engine longevity in a turbocharged engine. Reliability could also be affected by boost levels used. When I expressed my concerns about reliability it was only because I've never seen an engine of this type boosted. Floating steel sleeve cylinders, an aluminum block and an engine designed for a 4500 RPM redline could make for some very interesting results. Everything may work out perfectly but having few turbo 4.9L combos like this in the Fiero world;I'm sure that there will be many eager to see the result. What ET's are you shooting for?

------------------
87GT 3.4 Turbo Best 0-60 5.2 seconds
http://turbofiero.fierojoe.com/turbo.htm

IP: Logged
FieroGTT
Member
Posts: 489
From: Hard Hittin' New Britain, CT
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-05-2003 10:53 PM Click Here to See the Profile for FieroGTTClick Here to visit FieroGTT's HomePageSend a Private Message to FieroGTTDirect Link to This Post
Yes I have already spoken to PBJ on the subject and will be using a TBI throttle body with the injectors removed to get the IAC. The only concern I had with the motor was the floating sleeves, however, with the low boost I am using (well under 1 bar, 1/2 bar at most) I don't think the dynamic compression will reach dangerously high levels as to compromise the motor. but I guess PBJ and myself will find out the truth first hand soon enough. The 4,500RPM redline is due to the restrictions in the heads. It can rev higher. I feel the aluminum block to be an advantage rather than a hinderance. Too bad the heads aren't aluminum.

I am aware of the dangers of over revving a motor, especially the 4.9. I have purposely chosen a turbo that will make power BEFORE 5,500RPMS so that high revving won't be needed for power.

As far as ET's... I know its always a taboo.... but with some good tuning and traction I expect this to break 12's. However, whether this car will ever see traction or not is another story.

IP: Logged
PBJ
Member
Posts: 4167
From: London, On., Canada
Registered: Jan 2001


Feedback score: (1)
Leave feedback





Total ratings: 147
Rate this member

Report this Post07-10-2003 10:10 PM Click Here to See the Profile for PBJSend a Private Message to PBJDirect Link to This Post

quote
Originally posted by Dennis LaGrua:

After these engines are run for a few passes at the drags, that should tell the story.

Good news, Becks 4.9T has made well over 60 passes in 5 trips to the track succesfully.

Pete

------------------

IP: Logged
