I've been working on smoothing the front clip more while I toss front end designs around in my head.
I need some opinions from everyone that checks this thread, even if you absolutely hate it, tell me your honest opinion. Just a quick sketch of one of my ideas
Thanks
IP: Logged
07:15 PM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
73 new views and only 3 people commented? Come on people I'm not trying to pull teeth here I just want an "it sucks" "its cool" or "this is what I would change" response.
The front end looks kinda camero ish with a little ricer thrown in on the headlights. Can you get just a bit more radical? I do like the head lights, what are they?
IP: Logged
01:03 AM
exoticse Member
Posts: 8654 From: Orlando, Fl Registered: Jun 2003
BUMP update, as I sit here.... I know that I am not "allowed" to go out and play with my fiero for a bit because of doctors orders.. I was rushed to the hospital last night from chest pains, so the medication doesn't allow me to play.. So you better get out there and work damn it!
Please hit us up with some updates! I love what you were doing with the front end.. Plus these drawings gave me some more ideas, so + for you. And I believe I gave the original guy one as well, but I didn't save the pics so thanks! BUMPIT UP
Thanks for the bump sorry it has taken me so long to update.
Well after smoothing out the front a bit more, I now have to decide what to do for airflow.
While some of these designs are nice, I am a person for function above form. It may look nice, but if it isn't based around the fiero aerodynamics it is worthless because it alters the coefficient of drag.
So after a little research, I am going to throw an idea out there and see what flack I get for it. Fiero Aerodynamics:
Front end air tunnel:

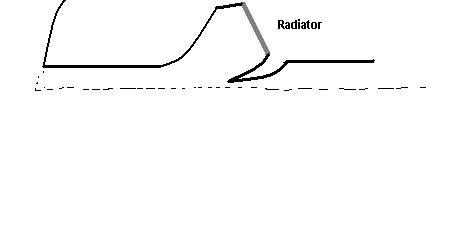

By now everyone is familiar with Norm's front end hood vent. It tucks down around the radiator to direct the air straight from the fan out. I will incorporate this in my front end, but the radiator piece will be attached to the radiator, it would be formed to meet up at the underside of the cowl hood, where there will be a seal to close it up against the "mouth" of the cowl. Below the radiator a similar piece would be made but reversed and attached to a flat panel under the nose. (Much like the stock air flap underneath the aero fascias, but oversized)
So the thought is to eliminate all front holes, like it is now in:
And make the bottom side of the nose the main radiator feed.
Why do this? Idaho requires a front plate... So what?
So half if not 3/4 of your airflow is blocked...
The question is... how vital to airflow/cooling properties are those 2" tall by 6" wide holes on each side of the plate?
Thanks.... sorry if this doesn’t make much sense, I had it all typed out and perfectly worded, then I accidentally hit the back button on the side of my mouse and it wiped it all out so I just pieced together a bit of what I remembered.
[This message has been edited by Nebiros88 (edited 10-21-2005).]
IP: Logged
08:28 PM
Oct 22nd, 2005
Fastback 86 Member
Posts: 7849 From: Los Angeles, CA Registered: Sep 2003
Heh heh, that reminds me of the time I tried to explain the airflow thing to a CHP officer. He laughed and told me that that was a new one and that I'd just have to figure something out. CA requires a front plate too, so he gave me a fix it ticket. The plate was back on the car long enough to get the ticket signed off.
Over 100 people viewed this in the last few hours and no one has any airflow insight? Not everyone is just cutting holes and bolting on scoops here and there for looks are they?
[This message has been edited by Nebiros88 (edited 10-22-2005).]
IP: Logged
11:31 AM
F-I-E-R-O Member
Posts: 8410 From: Endwell, NY Registered: Jan 2005
I honestly would mold in NSX type R lights into the factory light housings and retain the HID setup. But that might not work..
I would like to see the lights up a bit higher... and I believe it would look better and work better with a mouth. If you hadn't done the slight cowl effect with the hood, I would've done a GT40-ish kind of hood scoop. Maybe go with popups, except extremely low-profile pop up lights with 2 projectors per light.
I think the concept is pretty cool as is, what I'd really love to see on the rear end is some 911-style widened fenders on the rear. Not really IMSA widebodied, but just bulged and flared.
I love what you're doing with it, though.
-Mulholland GT
------------------ 1986 GT Getrag 5-speed
MULHOLLAND GT
IP: Logged
03:44 PM
Mulholland_GT_Racer Member
Posts: 387 From: Iowa City, IA USA Registered: Aug 2005
Sorry, just got here... The only thing I can add is this from my collection of favorite concept ideas (yes, yours is in there too!) ...
I did that photoshop a long time ago
The original car that is in the upper left hand corner is hard to see but there were a lot of things I didn't like about it. I just changed a bunch of things to try and make it look more "proportional".
------------------
IP: Logged
12:54 AM
F-I-E-R-O Member
Posts: 8410 From: Endwell, NY Registered: Jan 2005
Any idea where those hood vents came from? It sure would save me a lot of time having something like that put together already rather than having to make it...
IP: Logged
02:08 AM
theratdude64 Member
Posts: 236 From: Ogden, UT USA Registered: Sep 2005
Definitely needs a mouth of some sort. It would look to "blah" without it. Those Fiero GT sketches above are cool... the one with the smooth front end would look pretty good, in my opinion
I am not sure the cowl hood is the best for our plans to relieve the pressure under the hood. A cowl works well on front engine vehicles because the lower windshield area is a high-pressure zone. Air is sucked in to the engine that way. We want the opening of the scoop to be a low-pressure area, to pull the air through the radiator and out quickly.
I think the cowl looks much better though, so let me hear peoples thoughts on it.
IP: Logged
10:43 AM
Nov 28th, 2005
exoticse Member
Posts: 8654 From: Orlando, Fl Registered: Jun 2003
Okay, how about a center tunnel with Warber style hood venting for the radiator?
Have a very low profile open bottom inlet, centered in the front fascia. The top of the inlet should be perfectly horizontal at first, then slowly tapering up towards the top of the radiator, with enclosed side walls as well. Then, add a small bottom lip extending from the bottom of the radiator, extending forward about 10", to about 1-2 inches below the rest of the front fascia and 1-2" , in a slight semi-circle to catch the air and direct it towards the radiator.
Edit: Eh...N/M. I see you already were talking about this.
Nate ------------------
My Web page | The Turbo Super Duty Build. You know that little voice that says it can't be done? I duct-taped mine's mouth shut and pushed it down a flight of stairs.
[This message has been edited by FastIndyFiero (edited 11-28-2005).]
Wow... I didn’t even realize that this was bumped yesterday.
Plans have slowed recently... between driving to visit my girlfriend every other weekend, working almost full time, and still going to college it doesn’t leave me with much fiero time. That and I came down with strep throat the only week I had off from school for Thanksgiving.
Things are starting back up though, I have this week off from work, this is my week off from visiting my girlfriend, so I should have some time to get out and get some projects well on the way.
Indy, that’s exactly what I had planned for the front is to basically seal the radiator to the cowl so the fan forces the air out, and scoop up fresh air from under the car... and despite what some people may say, I have taped pieces of yarn to the underside lip of the cowl next to the windshield and they flutter just as I had planned...
Exoticse, thanks for the ideas, the more I look at that front end the more I like it and I think I could work that into a form that would be great for my car.
Thanks for the support... I may eventually make my t-top headliner public so stay tuned Also in the works - new more exotic back bumper, deck lid vent, side scoops...and a wide body
I decided to bump this with the details of the final body design... I followed a few people's advice with enhancing the fieros current looks rather then making some odd looking half-breed mistake. Took a few minutes today and sketched my final design.
I present... "The Reaper" (modified mouth, modified front turn signal area - not used for turn signals, front finned vent, one piece front with projector headlights, functional cowl extraction scoop, wide body starting at the front of the doors, back to a 2" wider rear on each side, a rounded out notchback, relocated gas filler, HHR tail lights, smoothed trim)
I got things lined out a lot better then when I first started this project... The front end pictured a ways above (plastered together front end) has been broken apart and started over so the I could do the process right this time and make a more quality plug.
So there she is...... any thoughts?
I plan on running 17x8 38mm offset in the front... and 18x10 38mm offset in the rear... deep dish anyone?
