Project 3400 Roller Cam Block by lou_dias
Started on: 07-27-2006 06:49 PM
Replies: 814 (31919 views)
Last post by: lou_dias on 09-17-2024 09:02 PM
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post03-16-2015 05:27 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
fresh rebuild starting to come together. In this pic the gasket was shifted a little to the right...I'd say it's "matched" well.

IP: Logged
starnes691
Member
Posts: 38
From: yesville
Registered: Apr 2015


Feedback score: N/A
Leave feedback

User Banned

Report this Post04-26-2015 02:33 PM Click Here to See the Profile for starnes691Send a Private Message to starnes691Edit/Delete MessageReply w/QuoteDirect Link to This Post
will it make 230 whp with those terrible flowing heads? will it even make it to 200 whp? nope. your 187 dyno was a farce which you admitted on www.realfierotech.com
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post09-28-2015 10:36 AM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by lou_dias:

fresh rebuild starting to come together. In this pic the gasket was shifted a little to the right...I'd say it's "matched" well.



Looks good!!

IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post09-28-2015 07:29 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
Looking good, Lou.

For what it's worth, I did before-and-after dyno tests of the Trueleo headers. The "before" was ported stock manifolds with a Fiero Store Y-pipe (not as restrictive as stock). So I already had a decent exhaust setup going. But the Trueleo headers increased power and torque over that. Most of the performance improvement was above 4000 RPM. And there was no noticeable loss of torque in the lower RPM range.

Long story short, the Trueleo headers are good for an engine that likes to rev (and/or breathes really well). So that new camshaft should compliment the headers nicely.

[This message has been edited by Blacktree (edited 09-28-2015).]

IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post09-29-2015 12:29 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks, I have been using them for 8 years and they were on the engine that made 249 ft*lbs on a Mustang dyno, so I was well aware they didn't hurt my torque.
I have the new motor built but discovered ignition issues. I've regapped the plugs and it feels better now. I hope to do some actual tuning soon. Torque feels good on the new motor (since the re-gap) now that it's a bit more broken in. Still under 500 miles on it with moly rings so it still smokes.
Also, my muffler developed some holes so I couldn't get a good reading on the A/F ratio when trying to get a base tune. Need to get it patched up...it never ends it seems...

Along the way I've had to replace yet another 5x4.75" wheel bearing and a West Shore rear bump-steer control arm...
...it just never ends...
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post09-30-2015 11:00 AM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hey Lou, try driving the car on long accel and decel. That will make the rings seat faster and better. My rings are usually seated in the 1st half hour of driving. And remember, don't use synthetic oil during break in.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post09-30-2015 11:19 AM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by La fiera:

Hey Lou, try driving the car on long accel and decel. That will make the rings seat faster and better. My rings are usually seated in the 1st half hour of driving. And remember, don't use synthetic oil during break in.


I have heard chrome-moly rings smoke for about 1200 miles...
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post09-30-2015 12:58 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
My heads are almost done, they should be here in the next 2 weeks along with my short block. Then I have to put it together.
Keep us informed on your progress! Good luck!
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post10-15-2015 01:33 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
race on 10/10/2015
Made it to round 3, had the lead but my body rolled onto my wide 315R17/35 tire that sticks out so I lost control... Would have had an 18 second lap. I can really push the turns now with my tire upgrade. New cam makes peak torque at 3600 instead of 4000 of the stock 3400 roller cam and peak hp at 4700 instead of 4900...which is exactly what I needed to lower my drop clutch and only get pulled on 1.5 lengths off the launch against the AWD car. I was able to make up ground in turns 1+2 & 3 and take the lead in turn 4. Now the long wait until next May. The car that "beat" me is a perennial 2nd place finisher this year and missed 2nd place by 2 feet in this event.

My races are at 2:50 , 16:20 and 22:10



Even better at 60fps
https://www.youtube.com/watch?v=2rd3VbegE68

[This message has been edited by lou_dias (edited 10-16-2015).]

IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post07-26-2016 10:09 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
Well, the competition hasn't sat still. Time to upgrade to lighter wheels that fit the tires better...

Weld 17x10's weigh only 2-3 lbs more than stock 15x7's...


IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post07-27-2016 01:07 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
stock rims weigh about 17.75 lbs with stock tires on and inflated, the wheel/tire package weighs 44.5 lbs each (15x7 215/60-R15).
my tires (315/35-R17) weigh 33.4 lbs. My current wheels are 17x9.5 but heavier than these new 17x10 wheels. I won't know the weight difference until I have the rubber dismounted. So it looks like my new combo will only be about 11 lbs heavier than stock per wheel+tire.
IP: Logged
PFF
System Bot
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post12-22-2016 03:36 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
Gonna be doing some surgery on the Trueleo intake.



A shame Trueleo didn't do their testing on ported heads. While these velocity stacks may help the stock 2.8, I think they have ended up being a restriction for my engine. Also, I'm finally removing the S neck that puts the throttle body infront of the decklid hinge so that I can run a proper cold air tube.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

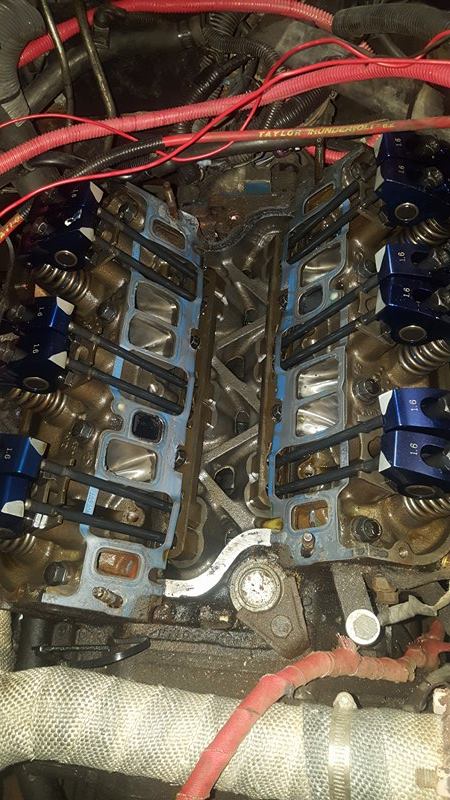

Report this Post12-22-2016 04:07 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

lou_dias

5348 posts
Member since Jun 2000
ports still look clean on the head....

IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post12-22-2016 11:15 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
The rounded ends on the velocity stacks significantly improve airflow. If you cut them back, you'll need to replicate the rounded ends, or you will lose port flow. If you're not careful, you could actually end up with worse port flow than you started with.

The graphic below illustrates what I'm talking about.

IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post12-23-2016 07:09 AM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
But I think the fact that they sit in the tubes occupying space is a restriction overall. Remember, this is a 3.4 with a .040 over bore, not a 2.8. Also my heads flow much more than 150cfm... It probably does improve flow for a 2.8 but becomes a restriction for a 3.4... The 3.4 generates more vacuum. My peak HP is coming in about 300 rpm below two different cams' advertised peak. 4900 with the stock 3400 roller cam and 4600 with the 480/480 lift cam advertised at 4900. I'm using a 2.5" exhaust with 1 3/8" ports and primaries...so it's not the exhaust... This is the same motor that made 187rwhp/249 ft*lbs with the ported Fiero intake. I've made ~177/221 ft*lbs with this intake before putting on heavier wheels. My tune and timing is spot on so the only difference left is the intake. After cutting off the neck to have it the way I originally wanted (no S curve), multiple people looked inside and did not like the tubes. So time for some open-intake surgery...

[This message has been edited by lou_dias (edited 12-23-2016).]

IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post12-23-2016 09:20 AM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
IMO, what you really need are larger diameter tubes and a larger plenum. So basically, the whole upper intake needs to be replaced. Talk to La Fiera for some ideas.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post12-23-2016 12:39 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Blacktree:

IMO, what you really need are larger diameter tubes and a larger plenum. So basically, the whole upper intake needs to be replaced. Talk to La Fiera for some ideas.

My Formula daily driver also has a 3400 block but uses the stock ECM and Camaro 9.0 pistons...
It's using a ported Fiero intake (the upper I made 187/249 with) that now has the DAWG-mod and it runs like a champ. I still haven't dyno-tested it or done any tuning to it.
You're starting to make me want to switch back...now with the DAWG-mod it isn't crippled at 4200 rpm infront of a 3.4...

I'm hoping that the Trueleo tubes aren't a restriction and the the velocity stacks are just inserted in there lowering the inside diameter at the entrance of the tubes... I'm using a twin 42mm TB from a 91 V8 Firebird which is good for 400cfm...
IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post12-23-2016 01:04 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think I know what you're talking about. You can probably fix that by widening the plenum. Try to imagine slicing it down the middle, and prying the two halves apart. That should give your velocity stacks more breathing room. Make it wide enough, and your throttle body can bolt right onto it.
IP: Logged
pmbrunelle
Member
Posts: 4502
From: Grand-Mère, Québec
Registered: Sep 2008


Feedback score: N/A
Leave feedback





Total ratings: 63
Rate this member

Report this Post12-24-2016 01:59 AM Click Here to See the Profile for pmbrunelleSend a Private Message to pmbrunelleEdit/Delete MessageReply w/QuoteDirect Link to This Post
Cutting the trumpets flush will reduce the pressure drop in the plenum, but at the expense of increasing the pressure drop at the inlet of each runner.

Will the reduced pressure drop in the plenum make up for the loss in performance at the runner inlets?

If there are no significant gains to be had by opening up the plenum, it is silly to even think of chopping the trumpets.

To confirm that the plenum is indeed a bottleneck, I suggest you measure the pressure drop between runner #6 and runner #1. With a barb fitting at each end of the plenum, and a water-filled clear tube, you can have a passenger observe the pressure drop at WOT. 4 inches of water is approximately equal to 1 kPa.

Without measurements, you're blind.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post01-11-2017 03:27 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
I've made the decision to ditch the Trueleo. I can't imagine how much surface rust is going thru the runner... Dug out my old middle intake...

http://www.youtube.com/watch?v=_zZB6THQ8R8

Also received a Firebird 2.8 upper intake that I'll be porting and shortening...
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post02-14-2017 03:44 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
"My Formula daily driver also has a 3400 block but uses the stock ECM and Camaro 9.0 pistons...
It's using a ported Fiero intake (the upper I made 187/249 with) "

Lou, what you have to look is WHERE those 187 horses were made. Looking at your graph your HP peaked at 4300, then after that is coming down.
That 4300rpm limit is where your intake system starts to choke. When I say system I mean TB, Intake and cam design.
What I would do is get a bigger cam and make plenum bigger to move that 187 and even more, upper in the RPM range.

I have a upper plenum I can lend you and you can test it. It has plenty of plenum volume and nice runner length tor high hp and torque. It will stick out the decklid. But if you want to try it just pay shipping and I'll lend it to you. Its made out of a camaro intake.

[This message has been edited by La fiera (edited 02-14-2017).]

IP: Logged
PFF
System Bot
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post02-14-2017 08:25 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by La fiera:

"My Formula daily driver also has a 3400 block but uses the stock ECM and Camaro 9.0 pistons...
It's using a ported Fiero intake (the upper I made 187/249 with) "

Lou, what you have to look is WHERE those 187 horses were made. Looking at your graph your HP peaked at 4300, then after that is coming down.
That 4300rpm limit is where your intake system starts to choke. When I say system I mean TB, Intake and cam design.
What I would do is get a bigger cam and make plenum bigger to move that 187 and even more, upper in the RPM range.

I have a upper plenum I can lend you and you can test it. It has plenty of plenum volume and nice runner length tor high hp and torque. It will stick out the decklid. But if you want to try it just pay shipping and I'll lend it to you. Its made out of a camaro intake.

Yes - the neck was stock. Also, while the runners where ported, the gaskets were left stock and not cut to allow more air thru to match the larger ports. On page 7, I show a picture comparing the sizes of my ports to stock...
I've since DAWG-modded it and that's on my Formula now with the 57mm bore Fiero TB. On my race car, I am installing a ported 2.8 F-body intake bored to 60mm mated to my twin 42mm TB.

See how much larger my ports are:
https://www.fiero.nl/forum/F...L/075502-7.html#p264

[This message has been edited by lou_dias (edited 02-14-2017).]

IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post04-12-2017 05:16 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
IP: Logged
BillS
Member
Posts: 643
From:
Registered: Apr 2000


Feedback score: N/A
Leave feedback

Rate this member

Report this Post05-26-2017 03:27 PM Click Here to See the Profile for BillSSend a Private Message to BillSEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think you'd be better off using a Camaro 3.4 intake - it flows better but it is set up for DIS so doesn't use a distributor and needs modification at te rear to clear your distributor (or fitting DIS to your engine).

Someone must have done this before. My application is an in line engine so I didn't have to deal with the location of the stock throttle body.



IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post05-26-2017 03:57 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
I considered that intake but the fact that the Fiero upper intake is 2 pieces allows for porting and polishing not available on the 3.4 intake.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post05-31-2017 06:08 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
3D printed adapter...

IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post05-31-2017 07:20 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
Whats the diameter on the upper intake manifold inlet?
IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 12:03 AM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
Just out of curiosity, why didn't you use a 60mm throttle body? Is there a particular reason for using the dual 42mm one instead?
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post06-01-2017 12:09 AM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by La fiera:
Whats the diameter on the upper intake manifold inlet?

I had it bored to about 59.x mm

@Blacktree
It's actually a dual 48mm. I got it cheap used some time ago and uses the same connectors at the Fiero harness. win-win
IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 09:20 AM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
Makes sense. That's pretty much the same reason I went with the Buick GN throttle body. The bore is 59mm, and it uses OBD-1 electronics.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post06-01-2017 02:52 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Blacktree:

Makes sense. That's pretty much the same reason I went with the Buick GN throttle body. The bore is 59mm, and it uses OBD-1 electronics.

That's good to know. I wonder if the bolt-holes line up for the Firebird intake... Got a pic?
IP: Logged
PFF
System Bot
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 07:09 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think you'll need an adapter plate. There are some photos of the install in my build thread.

https://www.fiero.nl/forum/F...3/HTML/000049-5.html

Note that the throttle body had to be installed upside-down to put the bellcrank on the correct side.
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post06-01-2017 09:04 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Blacktree:

I think you'll need an adapter plate. There are some photos of the install in my build thread.

https://www.fiero.nl/forum/F...3/HTML/000049-5.html

Note that the throttle body had to be installed upside-down to put the bellcrank on the correct side.

This one is also upside down. Gee...2 bolts just like the Firebird intake... I should order a gasket to see how it would line up with the 2.8 gasket.... Don't like the height though and my twin 48mm does offer as much or more flow.
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post06-01-2017 09:18 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by lou_dias:

This one is also upside down. Gee...2 bolts just like the Firebird intake... I should order a gasket to see how it would line up with the 2.8 gasket.... Don't like the height though and my twin 48mm does offer as much or more flow.


Yes Lou but you are chocking the flow of the TPI TB with the black restrictor!

IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 09:20 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
If your current setup works, then IMO there really isn't any point in changing it.
IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 09:34 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post

Blacktree

20770 posts
Member since Dec 2001

quote
Originally posted by La fiera: Yes Lou but you are chocking the flow of the TPI TB with the black restrictor!

The adapter may not be choking the airflow as much as you think. Let's assume the opening in the intake manifold is 60mm diameter. That will give it cross-sectional area of about 28.3cm2. Now, let's assume the throttle plates are 48mm diameter, and the actuator rod is 6mm diameter. The throttle body would have a total cross-sectional area of about 30cm2. We're talking about a 6% difference in cross-sectional area. Yes, the air will speed up a little bit through the throttle neck. But as long as the walls are smooth in that area, the parasitic power drain should be negligible.
IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post06-01-2017 09:53 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
I see your point but the problem is that with the puny upper manifold and the black chocker the air will be very turbulent. He needs to keep the same diameter throughout and increase the plenum. The idea is to keep the plenum full by slowing the air in (big TB and big plenum) and then speed it up at the runners. If you empty the plenum before it can be filled up the engine will not hit 100kpa and its going to rev slower, it will also go into vacuum and that will affect power proportionally.

But if Lou's engine only revs to 45-4800 max, that set up should be ok. He'll have a heck of low to mid range curve!
IP: Logged
Blacktree
Member
Posts: 20770
From: Central Florida
Registered: Dec 2001


Feedback score:    (12)
Leave feedback





Total ratings: 350
Rate this member

Report this Post06-01-2017 10:18 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
I agree that the plenum on that intake is way too small. The intake ports are kinda small, too. But like you said, if he only revs it to 4500 RPM, then it may not make a big difference.

The plenum filling is a good point, though. And that's why I'm building a dual plenum intake. Each plenum will have twice as long to refill after each cylinder inhales.

I once had an idea for a dual-plenum intake using a TPI V8 throttle body. The idea was to make a big plenum with a divider wall in the middle, to split it in half. So each of the two plates in the TPI throttle body would be feeding a separate plenum. If someone were to do that to a 2.8 or 3.4 V6, I think they should use twin 52mm plates. The twin 48mm may not be large enough.

[This message has been edited by Blacktree (edited 06-01-2017).]

IP: Logged
La fiera
Member
Posts: 2236
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post06-01-2017 10:31 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post
I have a twin 58mm. I smash the throttle and it goes from 900 to rev limiter in a blink of an eye!!
IP: Logged
lou_dias
Member
Posts: 5348
From: Warwick, RI
Registered: Jun 2000


Feedback score: (3)
Leave feedback





Total ratings: 67
Rate this member

Report this Post06-02-2017 12:57 PM Click Here to See the Profile for lou_diasSend a Private Message to lou_diasEdit/Delete MessageReply w/QuoteDirect Link to This Post
My adapter morphs to a 59mm round circle so it guides the air from the wide mouth to the perfect circle. I didn't use as high a polygon count in this print but I can acid-smoothen it with the vapor from nail-polish remover. I wanted to make sure it would last before going nuts. Again, I bored the FIREBIRD intake neck to 59+mm so no restriction there. The middle intake is the shortened one I used back in 2009 and the ports on the upper Firebird intake were widened to match along with the gaskets cut to match. My lower is the same lower, well-ported I've been using from the get-go.

Just waiting for my guy to remove the left Archie rocker panel to run the air filter with CAI to the throttle body, then I can take it to the dyno for tuning. He works on race cars for a lot of people that compete at Seekonk Speedway so I got to wait my turn... /sigh

The 480"/480" rollercam I'm using has an advertised peak of 4900 rpm. The TB and intake should flow plenty to 6000rpm. My next build will be a 3.5L version with the .510" cam. That engine will be high revving and will use longer V8 rods with shaved 3.5L pistons to reduce the dish-height to compensate for the longer rod and increase compression. I'll also be switching to the 1.76" intake valve and radius the opening appropriately. I'll probably machine down the valve stems as well.

At that point I'd probably switch to the LT1 throttle body...

[This message has been edited by lou_dias (edited 06-02-2017).]

IP: Logged
Previous Page | Next Page

This topic is 21 pages long:  1   2   3   4   5   6   7   8   9   10   11   12   13   14   15   16   17   18   19   20   21
next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
