Code 13 - 87 SE by MERATIME
Started on: 04-13-2025 05:05 AM
Replies: 19 (242 views)
Last post by: MERATIME on 04-16-2025 01:24 AM
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-13-2025 05:05 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post

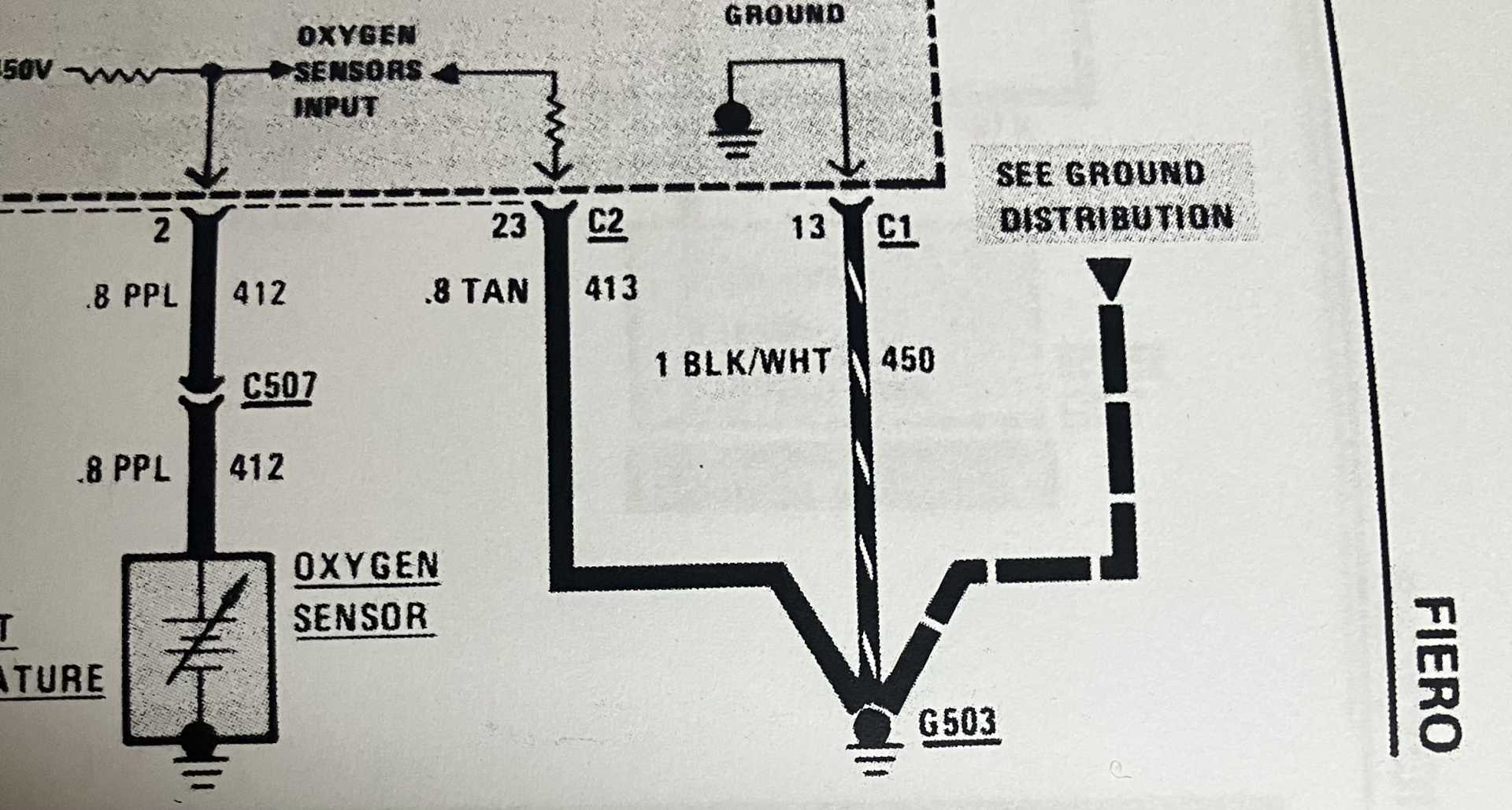

Hello guys and gals I’ve been enjoying this 1987 Fiero SE eversince the alternator situation has been fixed however, about a 1/2 mile heading home yesterday, the vehicle started to have the intermittent check engine light when accelerating. I did a scan and I’m getting a code 13. I double checked the oxygen sensor wire, unplugged it cleaned it, and reconnected it. I’m now having trouble finding the so-called negative ground wire which is a tan wire from the ECM. I also wanted to verify if there is a ground wire from the intake manifold that plays a role with the oxygen sensor? Also, if you all have any other suggestions on what could cause a code 13, that would be greatly appreciate it Thank you.



[This message has been edited by MERATIME (edited 04-13-2025).]

IP: Logged
PFF
System Bot
olejoedad
Member
Posts: 19719
From: Clarendon Twp., MI
Registered: May 2004


Feedback score: (5)
Leave feedback





Total ratings: 206
Rate this member

Report this Post04-13-2025 07:35 AM Click Here to See the Profile for olejoedadSend a Private Message to olejoedadEdit/Delete MessageReply w/QuoteDirect Link to This Post
The tan wire from the ECM attaches to the block/transmission stud near the starter.

There should be a heavy ground wire from the front passenger side head to the passenger side hinge box deck lid mounting stud.

[This message has been edited by olejoedad (edited 04-13-2025).]

IP: Logged
Vintage-Nut
Member
Posts: 1472
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-13-2025 10:43 AM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post
Ground Straps Matters and the Tan O2 ground is particularly picky!

I can't find a 2.5L G503 photo for you...

EDITED
I found the service manual location of G503 on a 2.5L on page 8A - 201 - 2
On *This* digital 1987 Pontiac Fiero Service Manual is on page 1035
https://fieroinfo.com/manua...M_Service_Manual.pdf

------------------
Original Owner of a Silver '88 GT
Under 'Production Refurbishment' @ 136k Miles

[This message has been edited by Vintage-Nut (edited 04-13-2025).]

IP: Logged
IMSA GT
Member
Posts: 10625
From: California
Registered: Aug 2007


Feedback score:    (8)
Leave feedback





Total ratings: 253
Rate this member

Report this Post04-13-2025 11:01 AM Click Here to See the Profile for IMSA GTSend a Private Message to IMSA GTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Don't know if this helps. Here is the info for the 84 4cyl. Don't know if the grounds are all the same on the 87 but it's a start.

[This message has been edited by IMSA GT (edited 04-13-2025).]

IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-13-2025 02:24 PM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
OldJoeDad, Vintage Nut & IMSA GT , Thank you for your input to this code situation. This will help very much. I’ll keep you all posted here.
IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-13-2025 04:15 PM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post

MERATIME

88 posts
Member since Aug 2022

quote
Originally posted by olejoedad:

The tan wire from the ECM attaches to the block/transmission stud near the starter.

There should be a heavy ground wire from the front passenger side head to the passenger side hinge box deck lid mounting stud.



“There should be a heavy ground wire from the front passenger side head to the passenger side hinge box deck lid mounting stud.”

Is this the ground wire from that stud leading to the trunk lid hinge that you are referring to in the photo below?

IP: Logged
olejoedad
Member
Posts: 19719
From: Clarendon Twp., MI
Registered: May 2004


Feedback score: (5)
Leave feedback





Total ratings: 206
Rate this member

Report this Post04-13-2025 05:44 PM Click Here to See the Profile for olejoedadSend a Private Message to olejoedadEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by MERATIME:


“There should be a heavy ground wire from the front passenger side head to the passenger side hinge box deck lid mounting stud.”

Is this the ground wire from that stud leading to the trunk lid hinge that you are referring to in the photo below?


Yes, it is indeed!
IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-13-2025 11:35 PM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thank you Olejoedad.
IP: Logged
Vintage-Nut
Member
Posts: 1472
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2025 08:04 AM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post
Consider A New Ground Strap from Rodney Dickman:

https://rodneydickman.com/p....php?products_id=485

IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2025 11:18 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thank you Vintage-Nut. 👍
IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2025 11:23 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post

MERATIME

88 posts
Member since Aug 2022
Just to reconfirm, is this the G503 connection on the image below? I have found information about the G503 for the 2.8. But I can’t find it for the Iron Duke which mine is equipped with.

Thanks.
IP: Logged
PFF
System Bot
Vintage-Nut
Member
Posts: 1472
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2025 12:52 PM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post
No

I posted the location of G503 on a 2.5L in the service manual
It is on page 8A - 201 - 2 / Figure B

If you don't have a printed manual; on *This* digital 1987 Pontiac Fiero Service Manual is on page 1035
https://fieroinfo.com/manua...M_Service_Manual.pdf

[This message has been edited by Vintage-Nut (edited 04-14-2025).]

IP: Logged
olejoedad
Member
Posts: 19719
From: Clarendon Twp., MI
Registered: May 2004


Feedback score: (5)
Leave feedback





Total ratings: 206
Rate this member

Report this Post04-14-2025 12:58 PM Click Here to See the Profile for olejoedadSend a Private Message to olejoedadEdit/Delete MessageReply w/QuoteDirect Link to This Post
No, that is not the G503.

In electrical nomenclature.....

G is a ground
S is a splice
C is a connector

100 is front compartment.
200 is interior
300 is typically engine compartment
400 is typically rear lights
500 would also be back there somewhere.

If I had access to my FSM' I could give you exact locations for each, but they are at home, and I am not!

[This message has been edited by olejoedad (edited 04-14-2025).]

IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2025 02:10 PM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Ahh… Now I see.Thank you both.


IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2025 12:00 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hello all !
I am now looking in the engine area of this Fiero SE. I was trying to double check the locations of those negative looped wires mentionedand this is where I found them in this first image below:



My question is if these negative wires in the right location or should they be attached to the bolt below showing in the second image?



Please let me know if what you see on the first image is the correct connection for G503. I couldn’t tell in the service manual on page 8A – 201–2 specifically which exact connecting the negative wires attached to for the location of G503.

Thank you for your input.


IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2025 12:01 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post

MERATIME

88 posts
Member since Aug 2022
Hello all !
I am now looking in the engine area of this Fiero SE. I was trying to double check the locations of those negative looped wires mentionedand.

This is where I found them in this first image below:
Note: It seems that these wires were connected to a bolt that attaches the transmission to the engine block. I did not do this. This was how the vehicle was when I got it back after the engine rebuild.




My question is if these negative wires are mounted in the right location or should they be attached to the bolt below showing in the second image?



Please let me know if what you see on the first image is the correct connection for G503. I couldn’t tell in the service manual on page 8A – 201–2 specifically which exact connecting spot the negative wires attached to for the location of G503.

Thank you for your input.

[This message has been edited by MERATIME (edited 04-16-2025).]

IP: Logged
Vintage-Nut
Member
Posts: 1472
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2025 08:11 AM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post

IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2025 10:44 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thank you Vintage-Nut ! I will now remove those wires, clean the wires loops & stud , then reconnect. Hopefully that will take care of the Code 13.
IP: Logged
Vintage-Nut
Member
Posts: 1472
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2025 10:51 AM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post
As I mentioned, Consider the Engine-to-Chassis Ground Strap Connection in the Path

Measure the Resistance from G503 to three points:
*To the Battery
*To the Chassis End of the Ground Strap
*To the Engine End of the Ground Strap

You want a very low resistance {1Ω to 2Ω} on all the three ground connections; ideally the same value...

Prior to using the Ohmmeter, touch the probes together to measure the parasitic resistance from the leads.
Subtract this amount of resistance from the test measurement.

PS - IF after cleaning the grounds and you still have a Code 13, replace the oxygen sensor because you don't have the proper tools to test the unit...

[This message has been edited by Vintage-Nut (edited 04-15-2025).]

IP: Logged
MERATIME
Member
Posts: 88
From: Arizona
Registered: Aug 2022


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-16-2025 01:24 AM Click Here to See the Profile for MERATIMESend a Private Message to MERATIMEEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Vintage-Nut:

As I mentioned, Consider the Engine-to-Chassis Ground Strap Connection in the Path

Measure the Resistance from G503 to three points:
*To the Battery
*To the Chassis End of the Ground Strap
*To the Engine End of the Ground Strap

You want a very low resistance {1Ω to 2Ω} on all the three ground connections; ideally the same value...

Prior to using the Ohmmeter, touch the probes together to measure the parasitic resistance from the leads.
Subtract this amount of resistance from the test measurement.

PS - IF after cleaning the grounds and you still have a Code 13, replace the oxygen sensor because you don't have the proper tools to test the unit...



I will test the 3 locations mentioned. I really appreciate your assistance.
